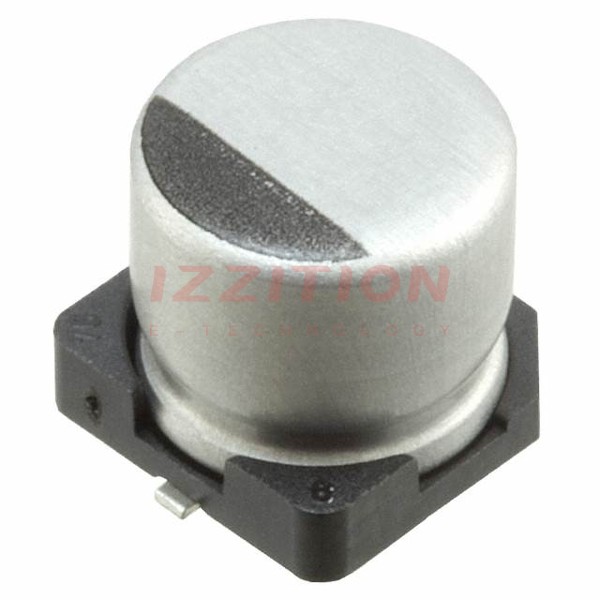

| Part Number | UCD1H100MCL1GS | UCD1H100MCL6GS | UCD1K100MCL1GS | UCD1J100MCL1GS | UCD1V100MCL1GS | UCJ1H100MCL1GS | UCD1C100MCL1GS | UCD1E100MCL1GS |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Not For New Designs | Active | Not For New Designs | Not For New Designs |
| Capacitance | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 80 V | 63 V | 35 V | 50 V | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | 14Ohm | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 125°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -40°C ~ 125°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | AEC-Q200 | - | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | General Purpose | Automotive | Automotive |
| Ripple Current @ Low Frequency | 85 mA @ 120 Hz | 45 mA @ 120 Hz | 30 mA @ 120 Hz | 40 mA @ 120 Hz | 80 mA @ 120 Hz | 47.5 mA @ 120 Hz | 45 mA @ 120 Hz | 45 mA @ 120 Hz |
| Ripple Current @ High Frequency | 170 mA @ 100 kHz | 90 mA @ 100 kHz | 60 mA @ 100 kHz | 80 mA @ 100 kHz | 160 mA @ 100 kHz | 95 mA @ 100 kHz | 90 mA @ 100 kHz | 90 mA @ 100 kHz |
| Impedance | 860 mOhms | 860 mOhms | 2.4 Ohms | 1.5 Ohms | 700 mOhms | - | 1.35 Ohms | 1.35 Ohms |
| Lead Spacing | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.197" Dia (5.00mm) | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) | 0.197" Dia (5.00mm) | 0.248" Dia (6.30mm) | 0.157" Dia (4.00mm) | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.315" (8.00mm) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.354" (9.00mm) | 0.240" (6.10mm) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
