Nichicon-UCD0J681MCL6GS - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	680 µF
Tolerance:	±20%
Voltage - Rated:	6.3 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 105°C
Operating Temperature:	-55°C ~ 105°C
Polarization:	Polar
Ratings:	AEC-Q200
Applications:	Automotive
Ripple Current @ Low Frequency:	300 mA @ 120 Hz
Ripple Current @ High Frequency:	600 mA @ 100 kHz
Impedance:	180 mOhms
Lead Spacing:	-
Size / Dimension:	0.394" Dia (10.00mm)
Height - Seated (Max):	0.323" (8.20mm)
Surface Mount Land Size:	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type:	Surface Mount
Package / Case:	Radial, Can - SMD

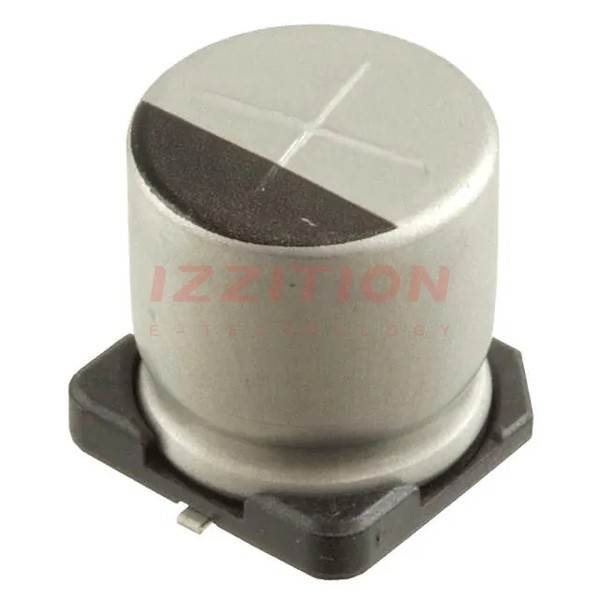

Nichicon UCD0J681MCL6GS
