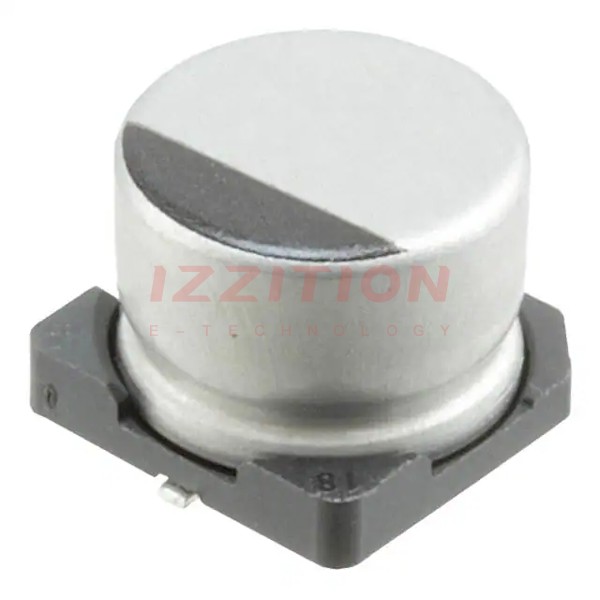

| Part Number | UCD0J331MCL6GS | UCD0J331MCL1GS |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs |
| Capacitance | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 |
| Applications | Automotive | Automotive |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz | 145 mA @ 120 Hz |
| Ripple Current @ High Frequency | 300 mA @ 100 kHz | 290 mA @ 100 kHz |
| Impedance | 260 mOhms | 320 mOhms |
| Lead Spacing | - | - |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.256" (6.50mm) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
