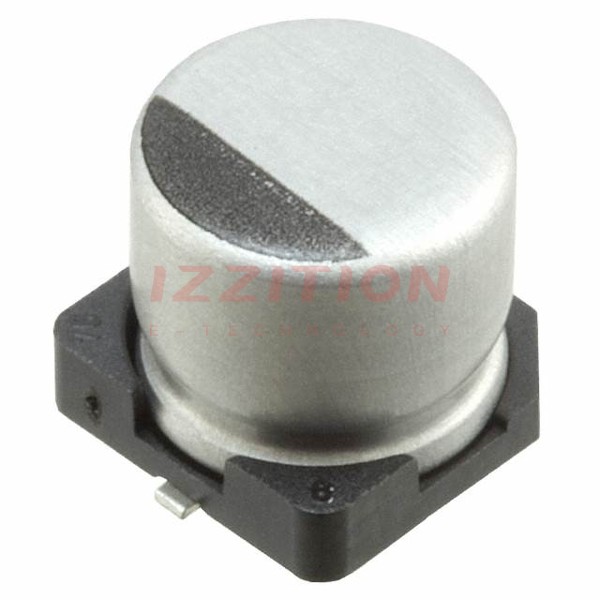

| Part Number | UCD0J221MCL1GS | UCD0J222MCL1GS | UCB0J221MCL1GS | UCD0J220MCL1GS |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Active | Active | Not For New Designs |
| Capacitance | 220 µF | 2200 µF | 220 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 6.3 V | 6.3 V | 6.3 V | 6.3 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 7000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -25°C ~ 105°C | -55°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | AEC-Q200 | AEC-Q200 | - | AEC-Q200 |
| Applications | Automotive | Automotive | General Purpose | Automotive |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz | 475 mA @ 120 Hz | 101 mA @ 120 Hz | 45 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 100 kHz | 950 mA @ 100 kHz | 151.5 mA @ 10 kHz | 90 mA @ 100 kHz |
| Impedance | 360 mOhms | 360 mOhms | - | 1.35 Ohms |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.394" Dia (10.00mm) | 0.248" Dia (6.30mm) | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) | 0.551" (14.00mm) | 0.343" (8.70mm) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
