Please send RFQ , we will respond immediately.

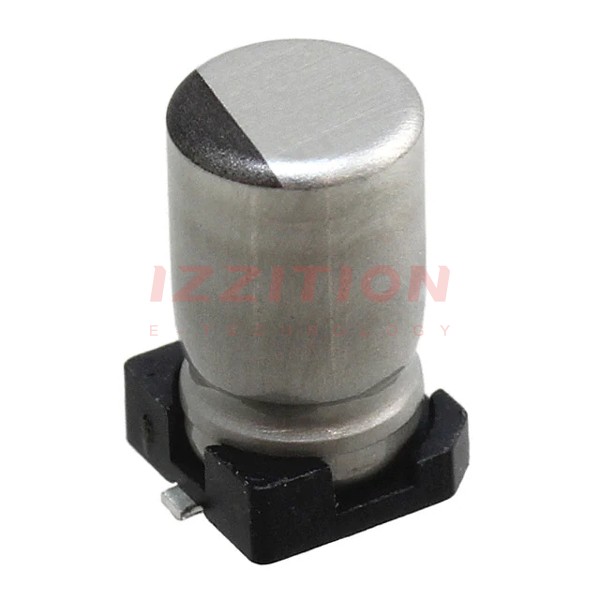

| Part Number | UCB1C100MCL1GS | UCB1C101MCL1GS | UCD1C100MCL1GS | UCB1V100MCL1GS |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Not For New Designs | Active |
| Capacitance | 10 µF | 100 µF | 10 µF | 10 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 16 V | 16 V | 35 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C | 7000 Hrs @ 105°C | 2000 Hrs @ 105°C | 7000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -55°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | Polar | Polar | Polar |
| Ratings | - | - | AEC-Q200 | - |
| Applications | General Purpose | General Purpose | Automotive | General Purpose |
| Ripple Current @ Low Frequency | 18 mA @ 120 Hz | 81 mA @ 120 Hz | 45 mA @ 120 Hz | 25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 27 mA @ 10 kHz | 121.5 mA @ 10 kHz | 90 mA @ 100 kHz | 37.5 mA @ 10 kHz |
| Impedance | - | - | 1.35 Ohms | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.157" Dia (4.00mm) | 0.248" Dia (6.30mm) | 0.157" Dia (4.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) | 0.343" (8.70mm) | 0.240" (6.10mm) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
