Please send RFQ , we will respond immediately.

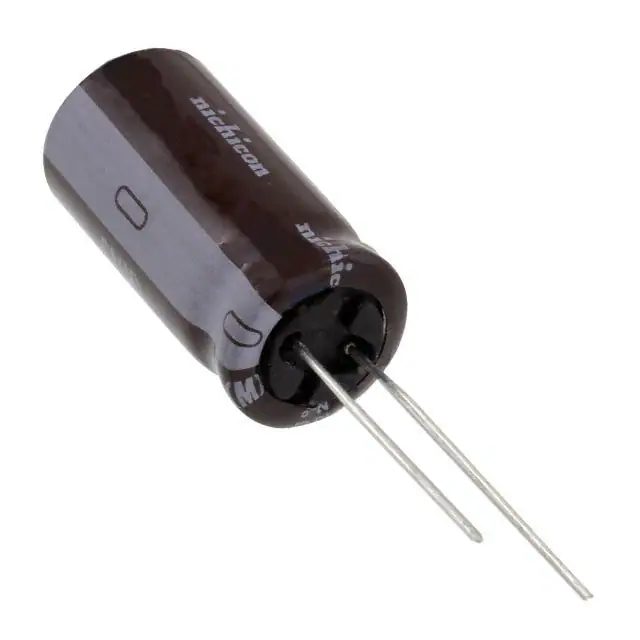

| Part Number | UCA2E470MHD1TO | UCA2C470MHD1TO | UCA2D470MHD1TO |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs | Not For New Designs |
| Capacitance | 47 µF | 47 µF | 47 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 250 V | 160 V | 200 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C | 12000 Hrs @ 105°C | 12000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C | -25°C ~ 105°C | -25°C ~ 105°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 360 mA @ 120 Hz | 362.5 mA @ 120 Hz | 390 mA @ 120 Hz |
| Ripple Current @ High Frequency | 720 mA @ 100 kHz | 725 mA @ 100 kHz | 780 mA @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) | 0.846" (21.50mm) | 0.846" (21.50mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
