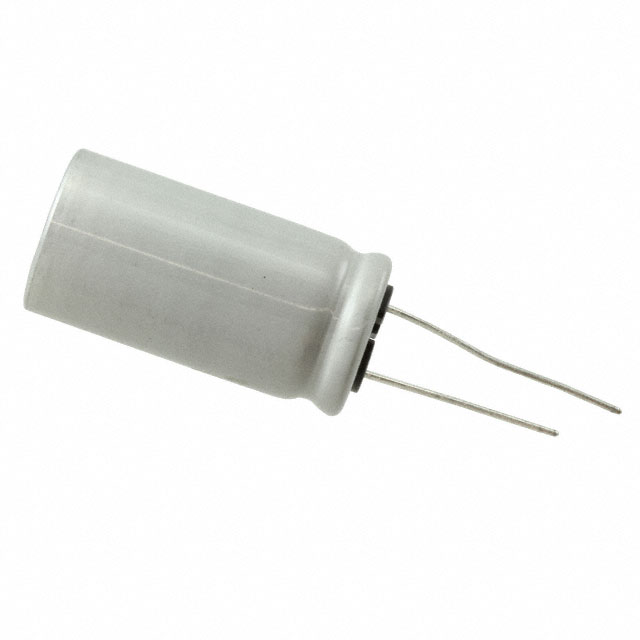

| Part Number | UBY1V622MHL | UBY1E622MHL | UBY1V222MHL |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 6200 µF | 6200 µF | 2200 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 35 V | 25 V | 35 V |
| ESR (Equivalent Series Resistance) | 19mOhm @ 100kHz | 23mOhm @ 100kHz | 28mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 135°C | 3000 Hrs @ 135°C | 3000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C | -40°C ~ 135°C | -40°C ~ 135°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 3.188 A @ 120 Hz | 2.89 A @ 120 Hz | 2.175 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.75 A @ 100 kHz | 3.4 A @ 100 kHz | 2.9 A @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.709" Dia (18.00mm) | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) | 1.299" (33.00mm) | 1.299" (33.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
