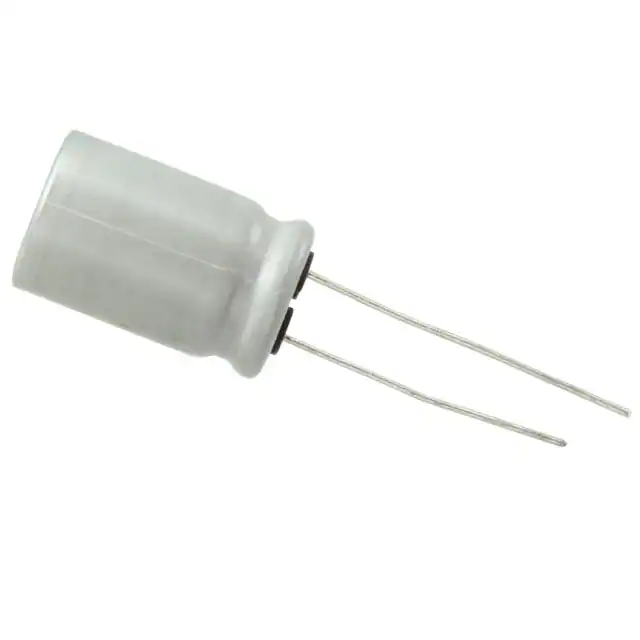

Nichicon-UBY1K681MHL1TN - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	680 µF
Tolerance:	±20%
Voltage - Rated:	80 V
ESR (Equivalent Series Resistance):	38mOhm @ 100kHz
Lifetime @ Temp.:	3000 Hrs @ 135°C
Operating Temperature:	-40°C ~ 135°C
Polarization:	Polar
Ratings:	-
Applications:	Automotive
Ripple Current @ Low Frequency:	1.764 A @ 120 Hz
Ripple Current @ High Frequency:	2.94 A @ 100 kHz
Impedance:	-
Lead Spacing:	0.295" (7.50mm)
Size / Dimension:	0.630" Dia (16.00mm)
Height - Seated (Max):	1.043" (26.50mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Nichicon UBY1K681MHL1TN
