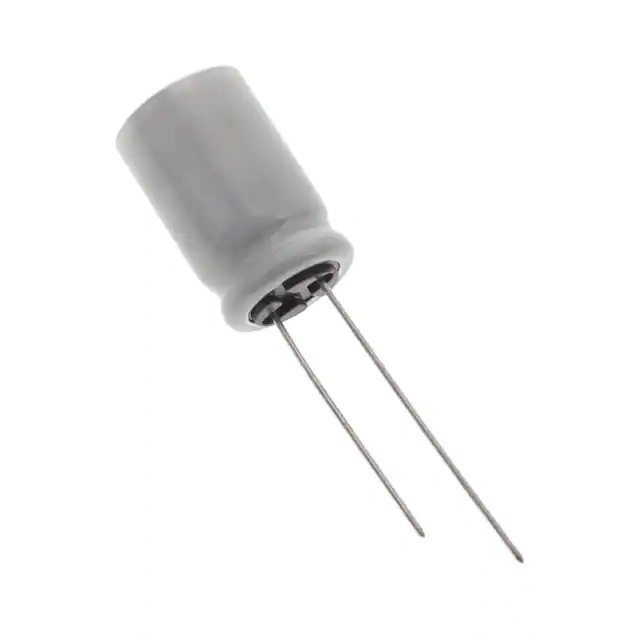

Nichicon-UBY1K271MHL - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	270 µF
Tolerance:	±20%
Voltage - Rated:	80 V
ESR (Equivalent Series Resistance):	74mOhm @ 100kHz
Lifetime @ Temp.:	3000 Hrs @ 135°C
Operating Temperature:	-40°C ~ 135°C
Polarization:	Polar
Ratings:	-
Applications:	Automotive
Ripple Current @ Low Frequency:	820 mA @ 120 Hz
Ripple Current @ High Frequency:	1.64 A @ 100 kHz
Impedance:	-
Lead Spacing:	0.197" (5.00mm)
Size / Dimension:	0.492" Dia (12.50mm)
Height - Seated (Max):	0.846" (21.50mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Nichicon UBY1K271MHL
