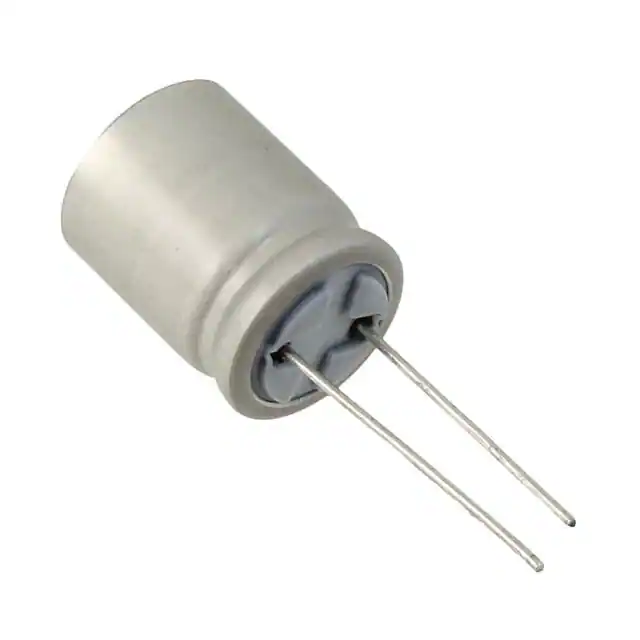

| Part Number | UBY1H132MHL6TN | UBY1H182MHL6TN | UBY1H132MHL3TN |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 1300 µF | 1800 µF | 1300 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | 33mOhm @ 100kHz | 32mOhm @ 100kHz | 38mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 135°C | 3000 Hrs @ 135°C | 3000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C | -40°C ~ 135°C | -40°C ~ 135°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 2.424 A @ 120 Hz | 2.538 A @ 120 Hz | 1.878 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.04 A @ 100 kHz | 4.23 A @ 100 kHz | 3.13 A @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.709" Dia (18.00mm) | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.083" (27.50mm) | 1.043" (26.50mm) | 0.846" (21.50mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
