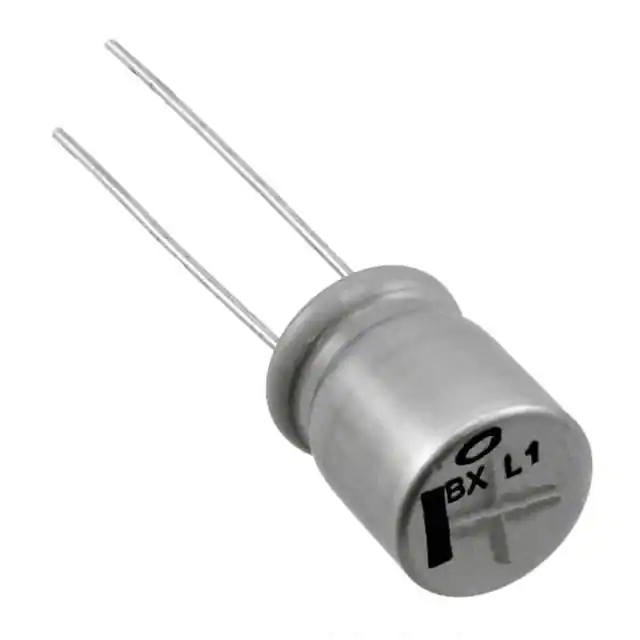

| Part Number | UBX2D6R8MPL | UBX2V6R8MPL | UBX2G6R8MPL |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 6.8 µF | 6.8 µF | 6.8 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 200 V | 350 V | 400 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 150°C | 1000 Hrs @ 150°C | 1000 Hrs @ 150°C |
| Operating Temperature | -40°C ~ 150°C | -25°C ~ 150°C | -25°C ~ 150°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 83 mA @ 120 Hz | 110 mA @ 120 Hz | 88 mA @ 120 Hz |
| Ripple Current @ High Frequency | 149.4 mA @ 100 kHz | 198 mA @ 100 kHz | 158.4 mA @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) | 0.846" (21.50mm) | 0.846" (21.50mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
