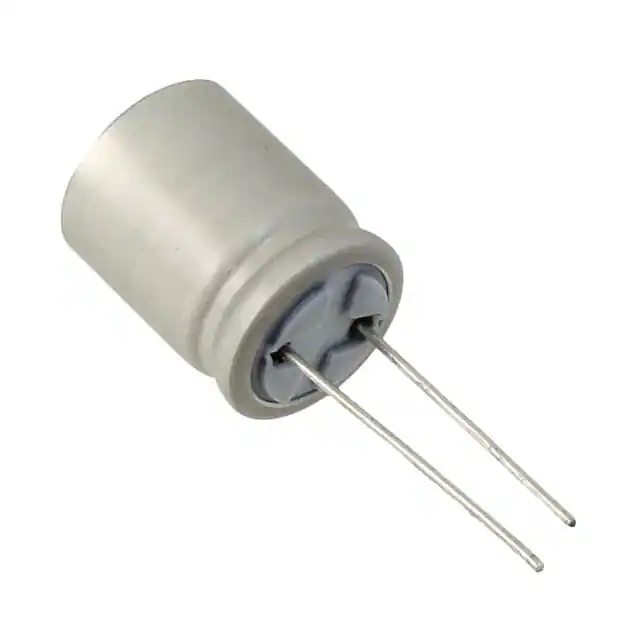

| Part Number | UBX2C680MHL1TN | UBX2D680MHL1TN |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 68 µF | 68 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 160 V | 200 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 150°C | 2000 Hrs @ 150°C |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | Automotive | Automotive |
| Ripple Current @ Low Frequency | 290 mA @ 120 Hz | 290 mA @ 120 Hz |
| Ripple Current @ High Frequency | 435 mA @ 100 kHz | 435 mA @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) | 1.043" (26.50mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
