UBX1C222MHL
  • Share:

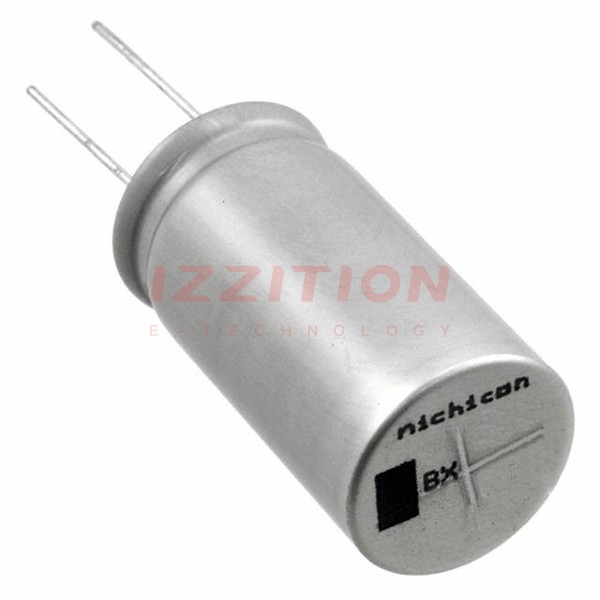

Nichicon UBX1C222MHL

Manufacturer No:
UBX1C222MHL
Manufacturer:
Nichicon
Package:
Bulk
Datasheet:
UBX1C222MHL Datasheet
ECAD Model:
-
Description:
CAP ALUM 2200UF 20% 16V RADIAL
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Capacitance:2200 µF
Tolerance:±20%
Voltage - Rated:16 V
ESR (Equivalent Series Resistance):-
Lifetime @ Temp.:2000 Hrs @ 150°C
Operating Temperature:-55°C ~ 150°C
Polarization:Polar
Ratings:-
Applications:Automotive
Ripple Current @ Low Frequency:804 mA @ 120 Hz
Ripple Current @ High Frequency:1.2 A @ 100 kHz
Impedance:-
Lead Spacing:0.295" (7.50mm)
Size / Dimension:0.709" Dia (18.00mm)
Height - Seated (Max):1.457" (37.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

$4.93
112

Please send RFQ , we will respond immediately.

Similar Products

Part Number UBX1C222MHL UBX1A222MHL
Manufacturer Nichicon Nichicon
Product Status Active Active
Capacitance 2200 µF 2200 µF
Tolerance ±20% ±20%
Voltage - Rated 16 V 10 V
ESR (Equivalent Series Resistance) - -
Lifetime @ Temp. 2000 Hrs @ 150°C 2000 Hrs @ 150°C
Operating Temperature -55°C ~ 150°C -55°C ~ 150°C
Polarization Polar Polar
Ratings - -
Applications Automotive Automotive
Ripple Current @ Low Frequency 804 mA @ 120 Hz 670 mA @ 120 Hz
Ripple Current @ High Frequency 1.2 A @ 100 kHz 1 A @ 100 kHz
Impedance - -
Lead Spacing 0.295" (7.50mm) 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm) 0.630" Dia (16.00mm)
Height - Seated (Max) 1.457" (37.00mm) 1.299" (33.00mm)
Surface Mount Land Size - -
Mounting Type Through Hole Through Hole
Package / Case Radial, Can Radial, Can
