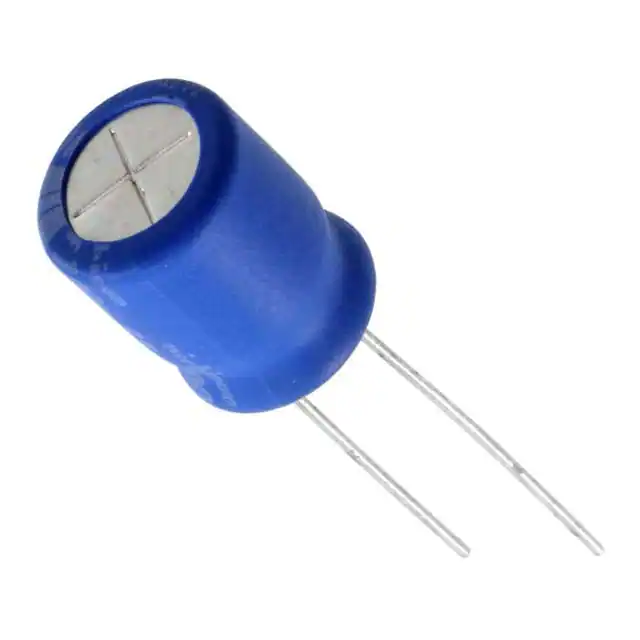

| Part Number | UBW2A330MPD | UBW2A331MPD |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 33 µF | 330 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 100 V | 100 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 135°C | - |
| Operating Temperature | -55°C ~ 135°C | -55°C ~ 135°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | Automotive | Automotive |
| Ripple Current @ Low Frequency | 240 mA @ 120 Hz | 895 mA @ 120 Hz |
| Ripple Current @ High Frequency | 480 mA @ 100 kHz | 1.79 A @ 100 kHz |
| Impedance | 800 mOhms | - |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) | 1.319" (33.50mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
