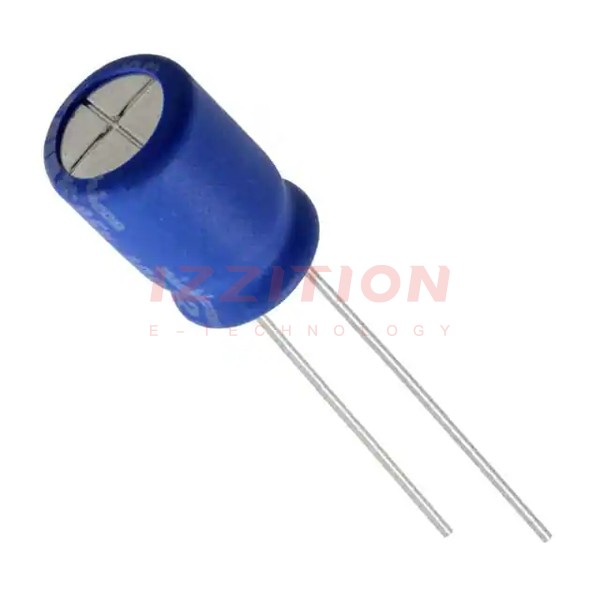

| Part Number | UBW1H4R7MPD1TA | UBW1H4R7MPD1TD |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 4.7 µF | 4.7 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 135°C | 1000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C | -55°C ~ 135°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | Automotive | Automotive |
| Ripple Current @ Low Frequency | 42.5 mA @ 120 Hz | 42.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 85 mA @ 100 kHz | 85 mA @ 100 kHz |
| Impedance | 1.15 Ohms | 1.15 Ohms |
| Lead Spacing | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.531" (13.50mm) | 0.531" (13.50mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
