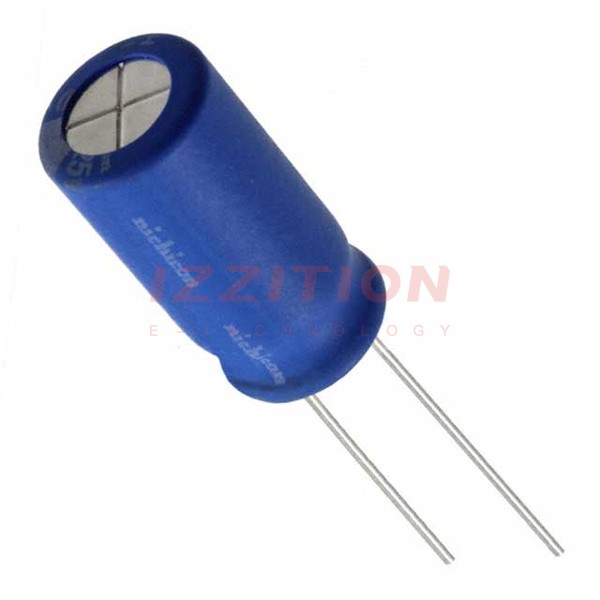

| Part Number | UBW1H221MPD1TD | UBW1V221MPD1TD | UBW1A221MPD1TD | UBW1C221MPD1TD | UBW1E221MPD1TD | UBW1H220MPD1TD |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active |
| Capacitance | 220 µF | 220 µF | 220 µF | 220 µF | 220 µF | 22 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 35 V | 10 V | 16 V | 25 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 135°C | 2000 Hrs @ 135°C | 1000 Hrs @ 135°C | 2000 Hrs @ 135°C | 2000 Hrs @ 135°C | 1000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C | -55°C ~ 135°C | -55°C ~ 135°C | -55°C ~ 135°C | -55°C ~ 135°C | -55°C ~ 135°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 465 mA @ 120 Hz | 395 mA @ 120 Hz | 170 mA @ 120 Hz | 310 mA @ 120 Hz | 340 mA @ 120 Hz | 125 mA @ 120 Hz |
| Ripple Current @ High Frequency | 930 mA @ 100 kHz | 790 mA @ 100 kHz | 340 mA @ 100 kHz | 620 mA @ 100 kHz | 680 mA @ 100 kHz | 250 mA @ 100 kHz |
| Impedance | 98 mOhms | 94 mOhms | 260 mOhms | 150 mOhms | 100 mOhms | 500 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) | 0.394" Dia (10.00mm) | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) | 0.709" (18.00mm) | 0.531" (13.50mm) | 0.571" (14.50mm) | 0.571" (14.50mm) | 0.531" (13.50mm) |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
