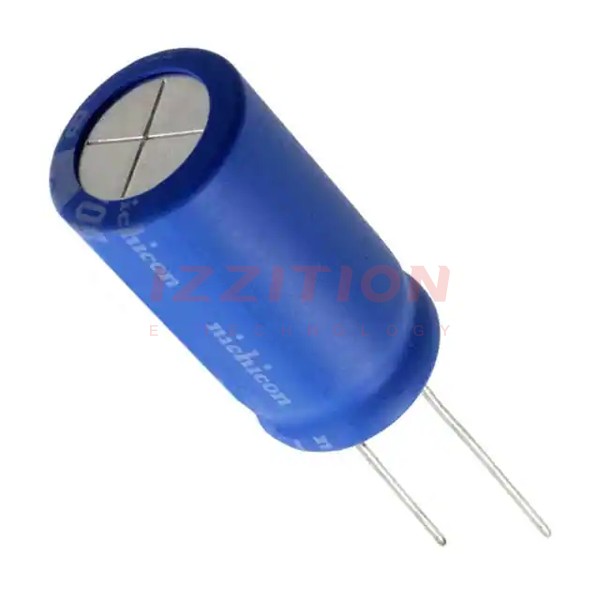

| Part Number | UBW1H102MHD | UBW1V102MHD | UBW1J102MHD | UBW1C102MHD | UBW1E102MHD |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 1000 µF | 1000 µF | 1000 µF | 1000 µF | 1000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 35 V | 63 V | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 3000 Hrs @ 135°C | 3000 Hrs @ 135°C | 3000 Hrs @ 135°C | 3000 Hrs @ 135°C | 3000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C | -55°C ~ 135°C | -55°C ~ 135°C | -55°C ~ 135°C | -55°C ~ 135°C |
| Polarization | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - |
| Applications | Automotive | Automotive | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 1.628 A @ 120 Hz | 1.347 A @ 120 Hz | 1.273 A @ 120 Hz | 998.3 mA @ 120 Hz | 1.173 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.43 A @ 100 kHz | 2.01 A @ 100 kHz | 1.9 A @ 100 kHz | 1.49 A @ 100 kHz | 1.75 A @ 100 kHz |
| Impedance | 31 mOhms | 31 mOhms | 55 mOhms | 42 mOhms | 33 mOhms |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.630" Dia (16.00mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.319" (33.50mm) | 1.063" (27.00mm) | 1.319" (33.50mm) | 0.866" (22.00mm) | 1.063" (27.00mm) |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can | Radial, Can | Radial, Can |
