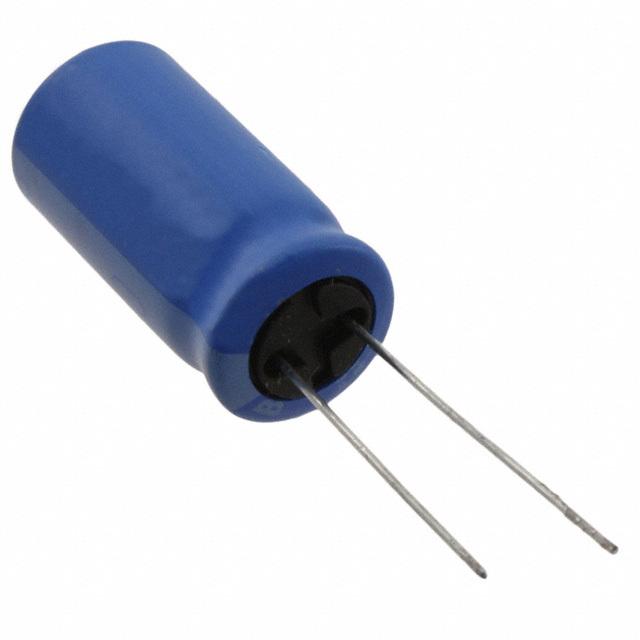

| Part Number | UBT1J331MHD | UBT1K331MHD | UBT1H331MHD |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Capacitance | 330 µF | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 63 V | 80 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 5000 Hrs @ 125°C | 5000 Hrs @ 125°C | 10000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | Automotive | Automotive | Automotive |
| Ripple Current @ Low Frequency | 645 mA @ 120 Hz | 695 mA @ 120 Hz | 665 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.29 A @ 100 kHz | 1.39 A @ 100 kHz | 1.33 A @ 100 kHz |
| Impedance | 120 mOhms | 160 mOhms | 70 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) | 1.319" (33.50mm) | 0.866" (22.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
