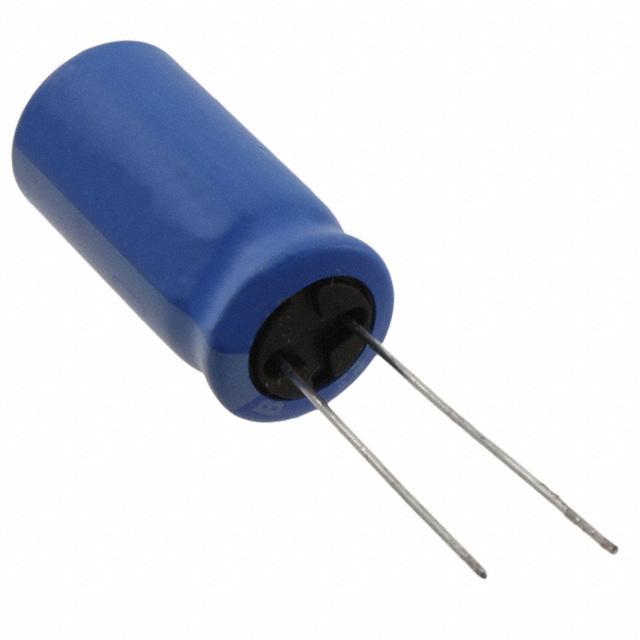

| Part Number | UBT1H471MHD1TO | UBT1V471MHD1TO |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Capacitance | 470 µF | 470 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 50 V | 35 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 10000 Hrs @ 125°C | 10000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | Automotive | Automotive |
| Ripple Current @ Low Frequency | 825 mA @ 120 Hz | 665 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.65 A @ 100 kHz | 1.33 A @ 100 kHz |
| Impedance | 55 mOhms | 58 mOhms |
| Lead Spacing | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) | 0.866" (22.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
