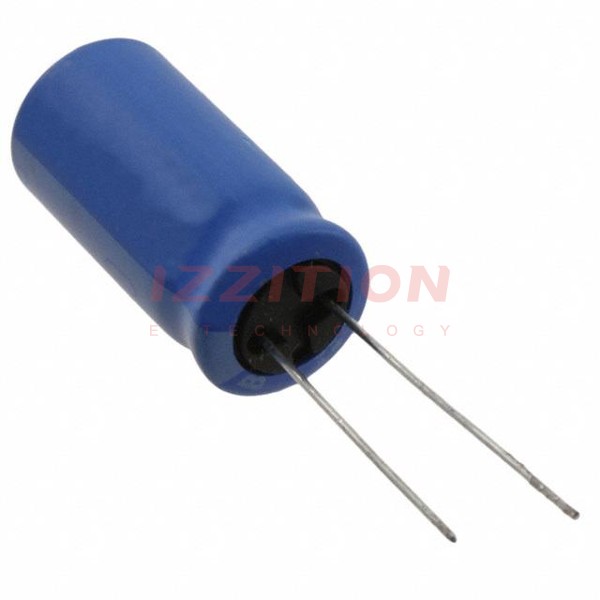

Nichicon-UBT1A222MHD1TO - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	2200 µF
Tolerance:	±20%
Voltage - Rated:	10 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	10000 Hrs @ 125°C
Operating Temperature:	-40°C ~ 125°C
Polarization:	Polar
Ratings:	-
Applications:	Automotive
Ripple Current @ Low Frequency:	1.172 A @ 120 Hz
Ripple Current @ High Frequency:	1.75 A @ 100 kHz
Impedance:	33 mOhms
Lead Spacing:	0.197" (5.00mm)
Size / Dimension:	0.492" Dia (12.50mm)
Height - Seated (Max):	1.063" (27.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Nichicon UBT1A222MHD1TO
