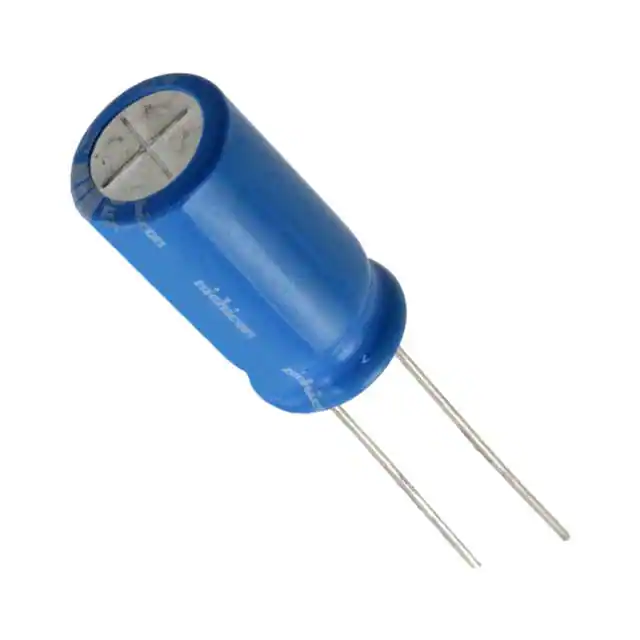

Nichicon-UBT1A102MPD - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	1000 µF
Tolerance:	±20%
Voltage - Rated:	10 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	5000 Hrs @ 125°C
Operating Temperature:	-40°C ~ 125°C
Polarization:	Polar
Ratings:	-
Applications:	Automotive
Ripple Current @ Low Frequency:	550 mA @ 120 Hz
Ripple Current @ High Frequency:	1.1 A @ 100 kHz
Impedance:	57 mOhms
Lead Spacing:	0.197" (5.00mm)
Size / Dimension:	0.394" Dia (10.00mm)
Height - Seated (Max):	0.866" (22.00mm)
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Radial, Can

Nichicon UBT1A102MPD
