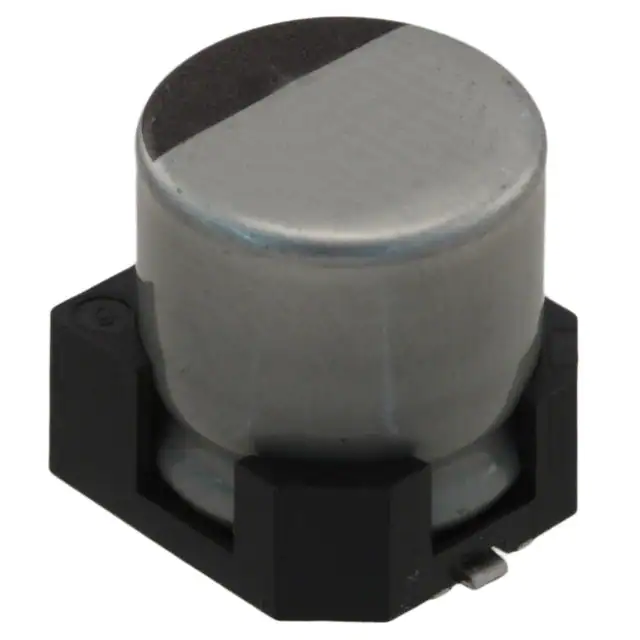

| Part Number | UBC1H470MNS1GS | UBC1V470MNS1GS |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Not For New Designs | Not For New Designs |
| Capacitance | 47 µF | 47 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 50 V | 35 V |
| ESR (Equivalent Series Resistance) | - | - |
| Lifetime @ Temp. | 1000 Hrs @ 150°C | 1000 Hrs @ 150°C |
| Operating Temperature | -40°C ~ 150°C | -40°C ~ 150°C |
| Polarization | Polar | Polar |
| Ratings | - | - |
| Applications | Automotive | Automotive |
| Ripple Current @ Low Frequency | 67 mA @ 120 Hz | 80 mA @ 120 Hz |
| Ripple Current @ High Frequency | 100 mA @ 100 kHz | 100 mA @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.394" Dia (10.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) | 0.453" (11.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
