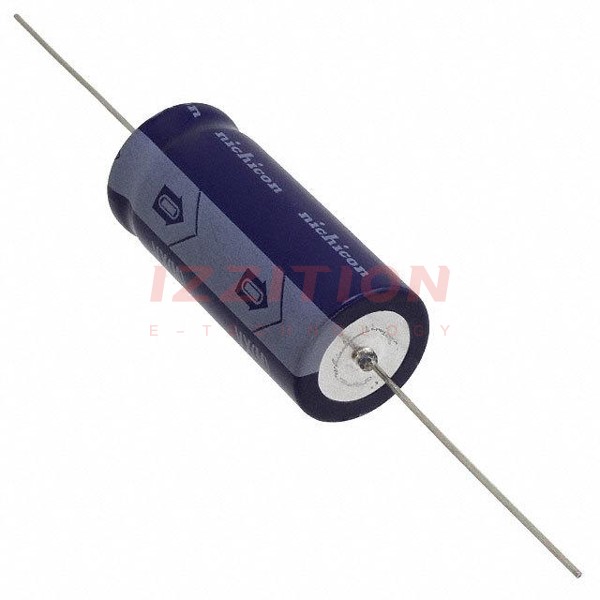

| Part Number | TVX2W330MCD | TVX2F330MCD | TVX2G330MCD | TVX2V330MCD |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 33 µF | 33 µF | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 450 V | 315 V | 400 V | 350 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Polarization | - | - | - | - |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 230 mA @ 120 Hz | 210 mA @ 120 Hz | 210 mA @ 120 Hz | 190 mA @ 120 Hz |
| Ripple Current @ High Frequency | 368 mA @ 10 kHz | 336 mA @ 10 kHz | 336 mA @ 10 kHz | 304 mA @ 10 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.709" Dia x 1.693" L (18.00mm x 43.00mm) | 0.630" Dia x 1.319" L (16.00mm x 33.50mm) | 0.630" Dia x 1.713" L (16.00mm x 43.50mm) | 0.630" Dia x 1.319" L (16.00mm x 33.50mm) |
| Height - Seated (Max) | - | - | - | - |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Can | Axial, Can | Axial, Can | Axial, Can |
