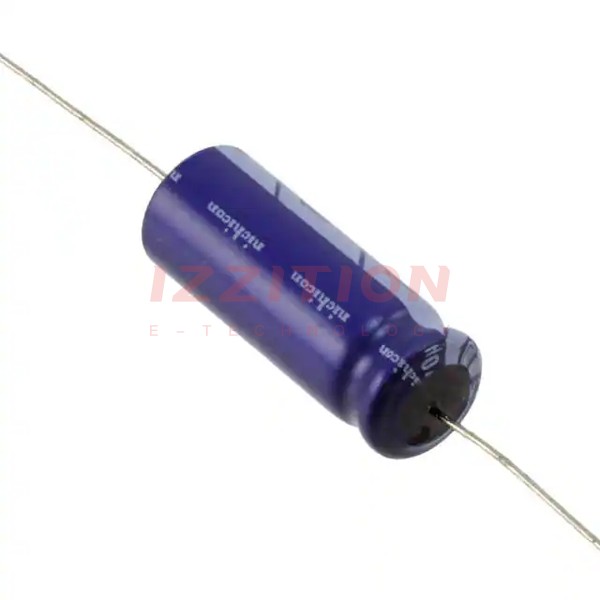

| Part Number | TVX2F100MCD1LZ | TVX2W100MCD1LZ | TVX2G100MCD1LZ | TVX2V100MCD1LZ | TVX2D100MCD1LZ | TVX2E100MCD1LZ | TVX2F100MCD1LT | TVX2F100MCD1LW |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF | 10 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 315 V | 450 V | 400 V | 350 V | 200 V | 250 V | 315 V | 315 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 80 mA @ 120 Hz | 85 mA @ 120 Hz | 85 mA @ 120 Hz | 85 mA @ 120 Hz | 70 mA @ 120 Hz | 70 mA @ 120 Hz | 80 mA @ 120 Hz | 80 mA @ 120 Hz |
| Ripple Current @ High Frequency | 128 mA @ 10 kHz | 136 mA @ 10 kHz | 136 mA @ 10 kHz | 136 mA @ 10 kHz | 112 mA @ 10 kHz | 112 mA @ 10 kHz | 128 mA @ 10 kHz | 128 mA @ 10 kHz |
| Impedance | - | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.394" Dia x 1.024" L (10.00mm x 26.00mm) | 0.512" Dia x 1.024" L (13.00mm x 26.00mm) | 0.512" Dia x 1.024" L (13.00mm x 26.00mm) | 0.512" Dia x 1.024" L (13.00mm x 26.00mm) | 0.394" Dia x 0.827" L (10.00mm x 21.00mm) | 0.394" Dia x 0.827" L (10.00mm x 21.00mm) | 0.394" Dia x 1.024" L (10.00mm x 26.00mm) | 0.394" Dia x 1.024" L (10.00mm x 26.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
| Surface Mount Land Size | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can |
