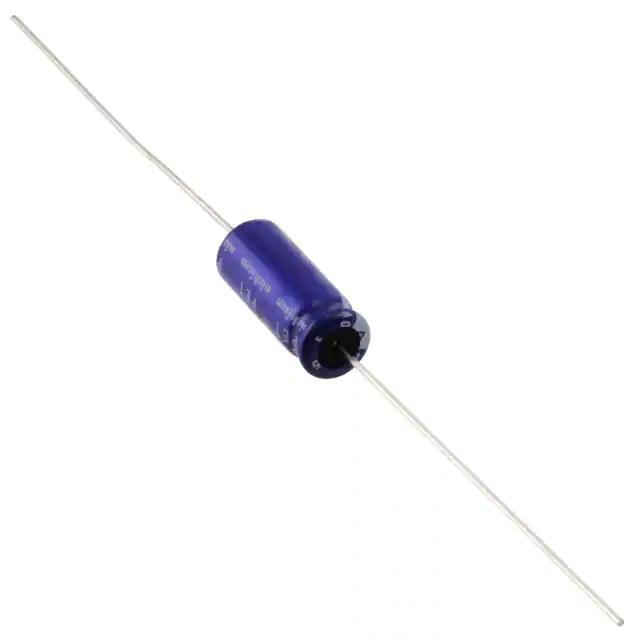

| Part Number | TVX2D2R2MAD | TVX2E2R2MAD | TVX2F2R2MAD | TVX2G2R2MAD | TVX2A2R2MAD | TVX2C2R2MAD |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 2.2 µF | 2.2 µF | 2.2 µF | 2.2 µF | 2.2 µF | 2.2 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 200 V | 250 V | 315 V | 400 V | 100 V | 160 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | - | - | - | - | - | - |
| Ratings | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 23 mA @ 120 Hz | 23 mA @ 120 Hz | 27 mA @ 120 Hz | 28 mA @ 120 Hz | 28 mA @ 120 Hz | 23 mA @ 120 Hz |
| Ripple Current @ High Frequency | 36.8 mA @ 10 kHz | 43.2 mA @ 10 kHz | 43.2 mA @ 10 kHz | 44.8 mA @ 10 kHz | 56 mA @ 10 kHz | 36.8 mA @ 10 kHz |
| Impedance | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - |
| Size / Dimension | 0.248" Dia x 0.669" L (6.30mm x 17.00mm) | 0.315" Dia x 0.669" L (8.00mm x 17.00mm) | 0.315" Dia x 0.669" L (8.00mm x 17.00mm) | 0.315" Dia x 0.827" L (8.00mm x 21.00mm) | 0.197" Dia x 0.512" L (5.00mm x 13.00mm) | 0.248" Dia x 0.669" L (6.30mm x 17.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - |
| Surface Mount Land Size | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can |
