Please send RFQ , we will respond immediately.

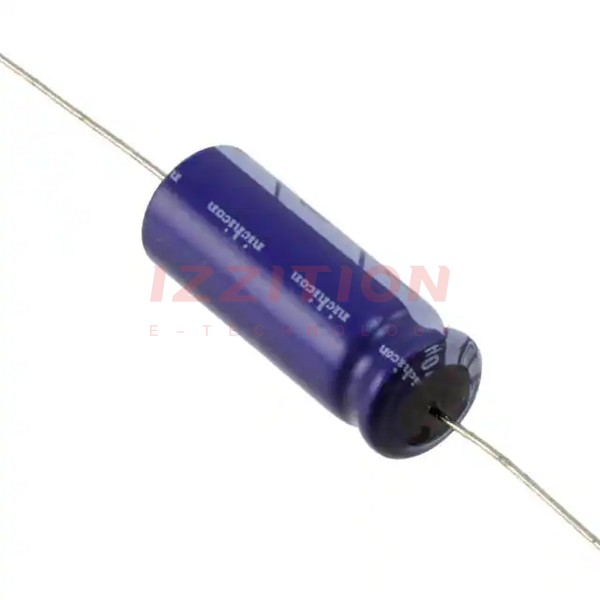

| Part Number | TVX2A101MCD1LW | TVX2A101MCD1LZ | TVX2A101MCD1LT |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete |
| Capacitance | 100 µF | 100 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 100 V | 100 V | 100 V |
| ESR (Equivalent Series Resistance) | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 340 mA @ 120 Hz | 340 mA @ 120 Hz | 340 mA @ 120 Hz |
| Ripple Current @ High Frequency | 510 mA @ 10 kHz | 510 mA @ 10 kHz | 510 mA @ 10 kHz |
| Impedance | - | - | - |
| Lead Spacing | - | - | - |
| Size / Dimension | 0.394" Dia x 1.024" L (10.00mm x 26.00mm) | 0.394" Dia x 1.024" L (10.00mm x 26.00mm) | 0.394" Dia x 1.024" L (10.00mm x 26.00mm) |
| Height - Seated (Max) | - | - | - |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Can | Axial, Can | Axial, Can |
