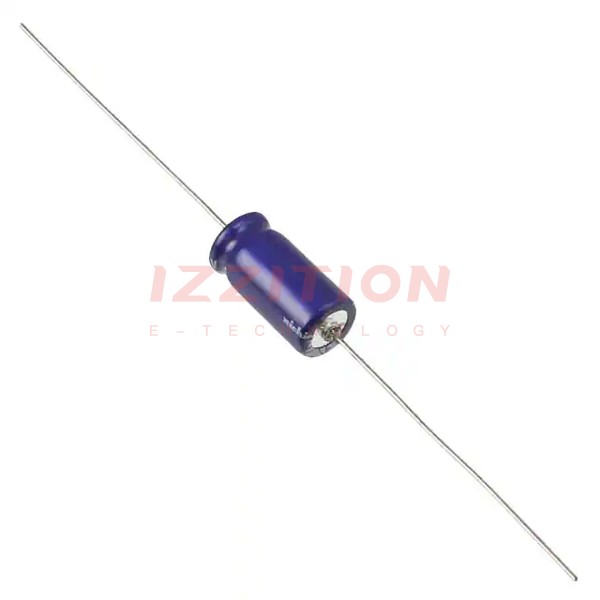

| Part Number | TVX1H101MAD1LV | TVX1J101MAD1LV | TVX1V101MAD1LV | TVX1H101MAD1LY | TVX1C101MAD1LV | TVX1E101MAD1LV | TVX1H100MAD1LV | TVX1H101MAD1LS |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 100 µF | 100 µF | 100 µF | 100 µF | 100 µF | 100 µF | 10 µF | 100 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 50 V | 63 V | 35 V | 50 V | 16 V | 25 V | 50 V | 50 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | Polar | Polar | Polar | Polar | Polar | Polar | Polar | Polar |
| Ratings | - | - | - | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 220 mA @ 120 Hz | 260 mA @ 120 Hz | 210 mA @ 120 Hz | 220 mA @ 120 Hz | 160 mA @ 120 Hz | 170 mA @ 120 Hz | 50 mA @ 120 Hz | 220 mA @ 120 Hz |
| Ripple Current @ High Frequency | 330 mA @ 10 kHz | 390 mA @ 10 kHz | 315 mA @ 10 kHz | 330 mA @ 10 kHz | 240 mA @ 10 kHz | 255 mA @ 10 kHz | 100 mA @ 10 kHz | 330 mA @ 10 kHz |
| Impedance | - | - | - | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - | - | - | - |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia x 0.787" L (8.00mm x 20.00mm) | 0.315" Dia x 0.630" L (8.00mm x 16.00mm) | 0.315" Dia x 0.630" L (8.00mm x 16.00mm) | 0.248" Dia x 0.630" L (6.30mm x 16.00mm) | 0.248" Dia x 0.630" L (6.30mm x 16.00mm) | 0.197" Dia x 0.472" L (5.00mm x 12.00mm) | 0.315" Dia x 0.630" L (8.00mm x 16.00mm) |
| Height - Seated (Max) | - | - | - | - | - | - | - | - |
| Surface Mount Land Size | - | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can |
