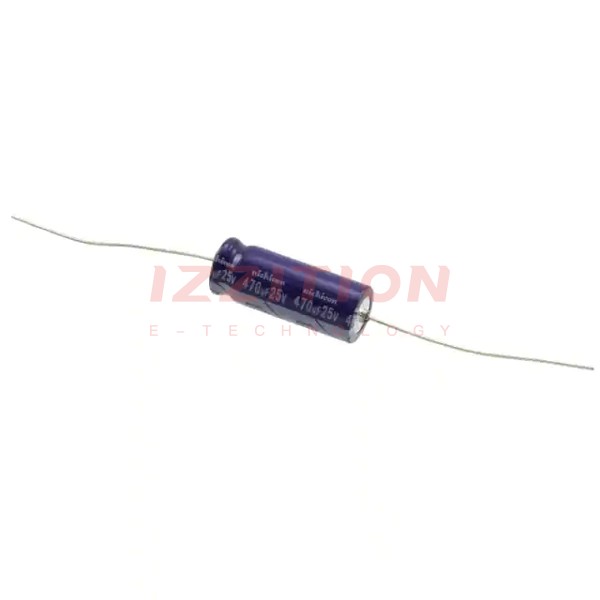

| Part Number | TVX1E471MCD | TVX1E472MCD | TVX1H471MCD | TVX1J471MCD |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 470 µF | 4700 µF | 470 µF | 470 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 25 V | 25 V | 50 V | 63 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | - | - | - | - |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 510 mA @ 120 Hz | 2.17 A @ 120 Hz | 730 mA @ 120 Hz | 840 mA @ 120 Hz |
| Ripple Current @ High Frequency | 765 mA @ 10 kHz | 2.4955 A @ 10 kHz | 1.095 A @ 10 kHz | 1.26 A @ 10 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.394" Dia x 1.102" L (10.00mm x 28.00mm) | 0.709" Dia x 1.713" L (18.00mm x 43.50mm) | 0.512" Dia x 1.102" L (13.00mm x 28.00mm) | 0.512" Dia x 1.319" L (13.00mm x 33.50mm) |
| Height - Seated (Max) | - | - | - | - |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Can | Axial, Can | Axial, Can | Axial, Can |
