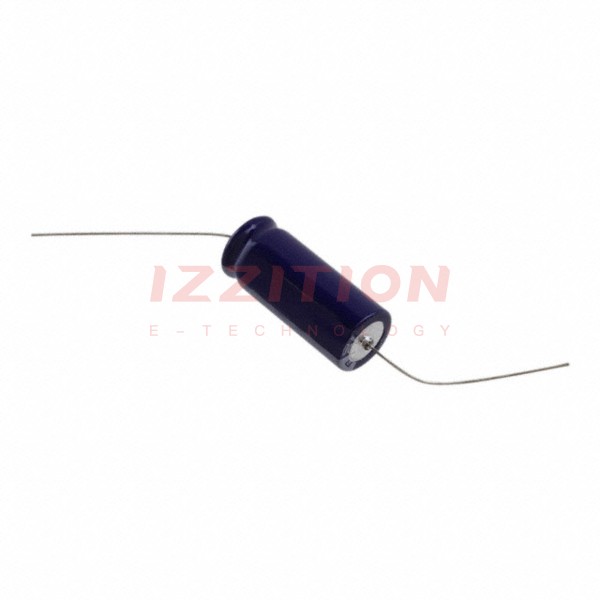

| Part Number | TVX1C222MCD | TVX1E222MCD | TVX1H222MCD | TVX1A222MCD |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 2200 µF | 2200 µF | 2200 µF | 2200 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 25 V | 50 V | 10 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | - | - | - | - |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 1.18 A @ 120 Hz | 1.48 A @ 120 Hz | 1.92 A @ 120 Hz | 1.09 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.357 A @ 10 kHz | 1.702 A @ 10 kHz | 2.208 A @ 10 kHz | 1.2535 A @ 10 kHz |
| Impedance | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.512" Dia x 1.319" L (13.00mm x 33.50mm) | 0.630" Dia x 1.319" L (16.00mm x 33.50mm) | 0.709" Dia x 1.713" L (18.00mm x 43.50mm) | 0.512" Dia x 1.102" L (13.00mm x 28.00mm) |
| Height - Seated (Max) | - | - | - | - |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Can | Axial, Can | Axial, Can | Axial, Can |
