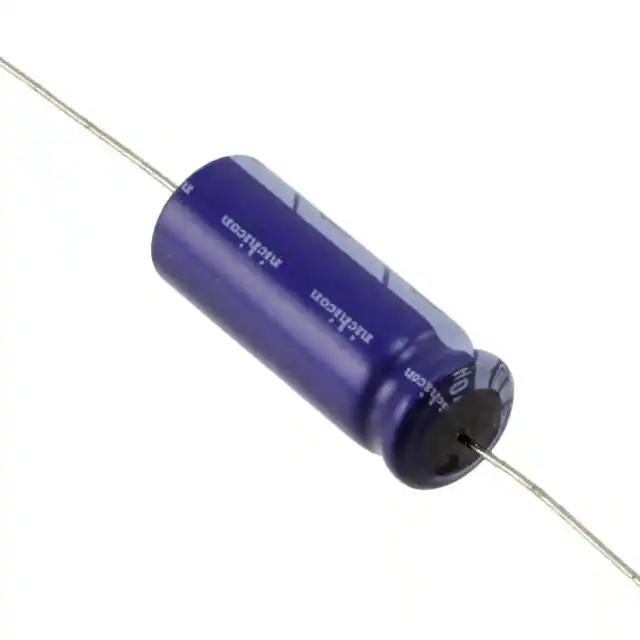

| Part Number | TVX1C102MCD | TVX1E102MCD | TVX1H102MCD | TVX1C152MCD | TVX1A102MCD |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 1000 µF | 1000 µF | 1000 µF | 1500 µF | 1000 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 16 V | 25 V | 50 V | 16 V | 10 V |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | - | - | - | Polar | - |
| Ratings | - | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 770 mA @ 120 Hz | 900 mA @ 120 Hz | 1.26 A @ 120 Hz | - | 640 mA @ 120 Hz |
| Ripple Current @ High Frequency | 885.5 mA @ 10 kHz | 1.035 A @ 10 kHz | 1.449 A @ 10 kHz | - | 736 mA @ 10 kHz |
| Impedance | - | - | - | - | - |
| Lead Spacing | - | - | - | - | - |
| Size / Dimension | 0.394" Dia x 1.102" L (10.00mm x 28.00mm) | 0.512" Dia x 1.102" L (13.00mm x 28.00mm) | 0.630" Dia x 1.319" L (16.00mm x 33.50mm) | - | 0.394" Dia x 0.906" L (10.00mm x 23.00mm) |
| Height - Seated (Max) | - | - | - | - | - |
| Surface Mount Land Size | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Can | Axial, Can | Axial, Can | Axial, Can | Axial, Can |
