Please send RFQ , we will respond immediately.

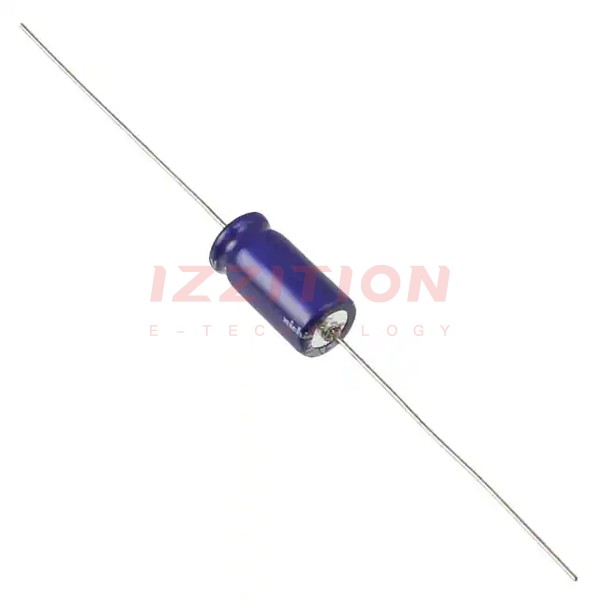

| Part Number | TVX1A331MAD | TVX1C331MAD | TVX1E331MAD | TVX1A330MAD |
|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Capacitance | 330 µF | 330 µF | 330 µF | 33 µF |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Voltage - Rated | 10 V | 16 V | 25 V | 10 V |
| ESR (Equivalent Series Resistance) | - | - | - | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Polarization | - | - | - | - |
| Ratings | - | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz | 320 mA @ 120 Hz | 380 mA @ 120 Hz | - |
| Ripple Current @ High Frequency | 450 mA @ 10 kHz | 480 mA @ 10 kHz | 570 mA @ 10 kHz | - |
| Impedance | - | - | - | - |
| Lead Spacing | - | - | - | - |
| Size / Dimension | 0.315" Dia x 0.669" L (8.00mm x 17.00mm) | 0.315" Dia x 0.669" L (8.00mm x 17.00mm) | 0.315" Dia x 0.827" L (8.00mm x 21.00mm) | - |
| Height - Seated (Max) | - | - | - | - |
| Surface Mount Land Size | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Axial, Can | Axial, Can | Axial, Can | Axial, Can |
