Nichicon-TVX0J222MCD - Aluminum Electrolytic Capacitors Product Specifications and Latest Quotes

Capacitance:	2200 µF
Tolerance:	±20%
Voltage - Rated:	6.3 V
ESR (Equivalent Series Resistance):	-
Lifetime @ Temp.:	2000 Hrs @ 85°C
Operating Temperature:	-40°C ~ 85°C
Polarization:	-
Ratings:	-
Applications:	General Purpose
Ripple Current @ Low Frequency:	1.02 A @ 120 Hz
Ripple Current @ High Frequency:	1.173 A @ 10 kHz
Impedance:	-
Lead Spacing:	-
Size / Dimension:	0.512" Dia x 1.102" L (13.00mm x 28.00mm)
Height - Seated (Max):	-
Surface Mount Land Size:	-
Mounting Type:	Through Hole
Package / Case:	Axial, Can

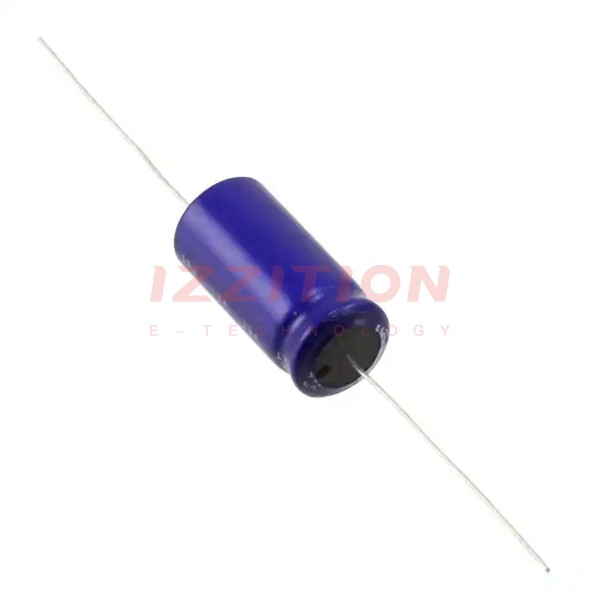

Nichicon TVX0J222MCD
