RSS1E470MCN1GS
  • Share:

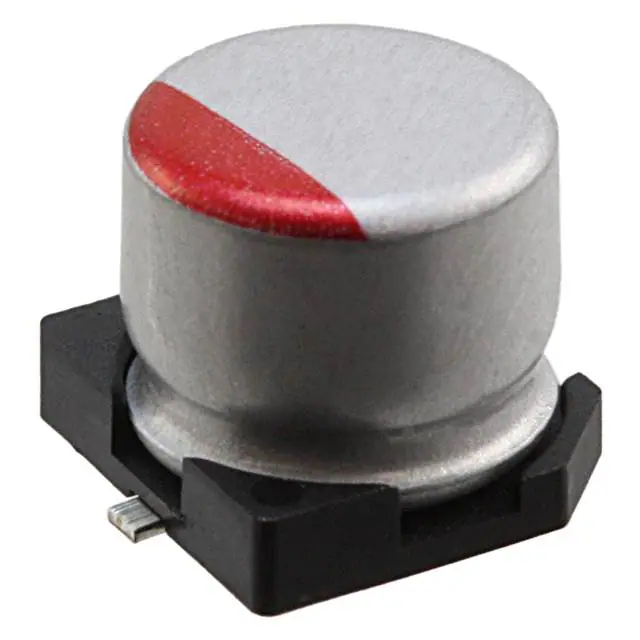

Nichicon RSS1E470MCN1GS

Manufacturer No:
RSS1E470MCN1GS
Manufacturer:
Nichicon
Package:
Tape & Reel (TR)
Datasheet:
RSS1E470MCN1GS Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY 47UF 20% 25V SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymer
Capacitance:47 µF
Tolerance:±20%
Voltage - Rated:25 V
ESR (Equivalent Series Resistance):30mOhm
Lifetime @ Temp.:2000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Ratings:-
Applications:General Purpose
Features:-
Ripple Current @ Low Frequency:280 mA @ 120 Hz
Ripple Current @ High Frequency:2.8 A @ 100 kHz
Impedance:-
Lead Spacing:-
Size / Dimension:0.248" Dia (6.30mm)
Height - Seated (Max):0.236" (6.00mm)
Surface Mount Land Size:0.256" L x 0.256" W (6.50mm x 6.50mm)
Mounting Type:Surface Mount
Package / Case:Radial, Can - SMD
0 Remaining View Similar

In Stock

$1.50
53

Please send RFQ , we will respond immediately.
