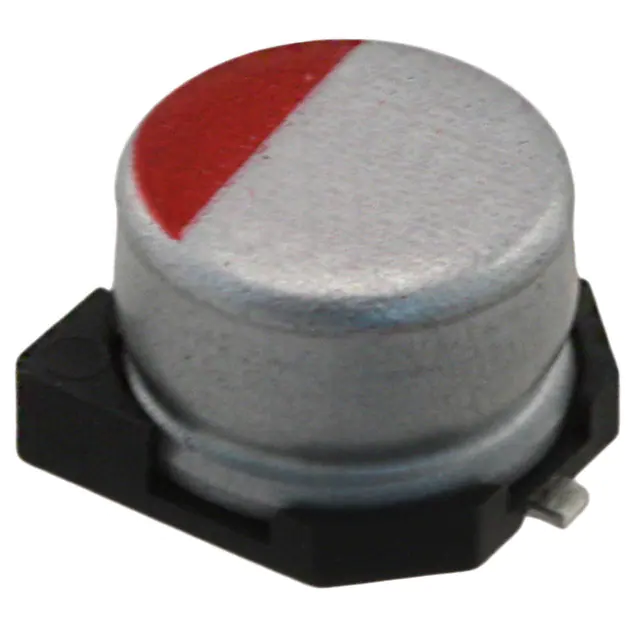

| Part Number | RSL1C150MCN1GB | RSL1E150MCN1GB |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Type | Polymer | Polymer |
| Capacitance | 15 µF | 15 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 16 V | 25 V |
| ESR (Equivalent Series Resistance) | 45mOhm | 55mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Features | - | - |
| Ripple Current @ Low Frequency | 190 mA @ 120 Hz | 170 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.9 A @ 100 kHz | 1.7 A @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.165" (4.20mm) | 0.177" (4.50mm) |
| Surface Mount Land Size | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
