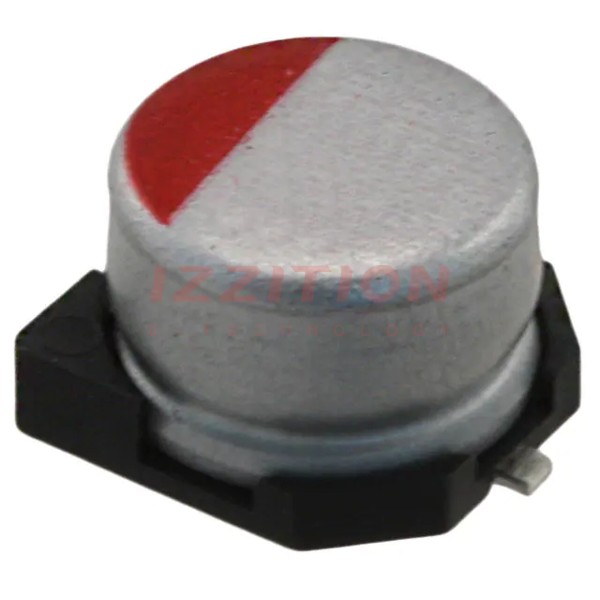

| Part Number | RSL0E221MCN1GB | RSL0J221MCN1GB |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Type | Polymer | Polymer |
| Capacitance | 220 µF | 220 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 2.5 V | 6.3 V |
| ESR (Equivalent Series Resistance) | 16mOhm | 18mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Features | - | - |
| Ripple Current @ Low Frequency | 350 mA @ 120 Hz | 320 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.5 A @ 100 kHz | 3.2 A @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | - | - |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.165" (4.20mm) | 0.165" (4.20mm) |
| Surface Mount Land Size | 0.256" L x 0.256" W (6.50mm x 6.50mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD |
