RS80E821MDNASQPX
  • Share:

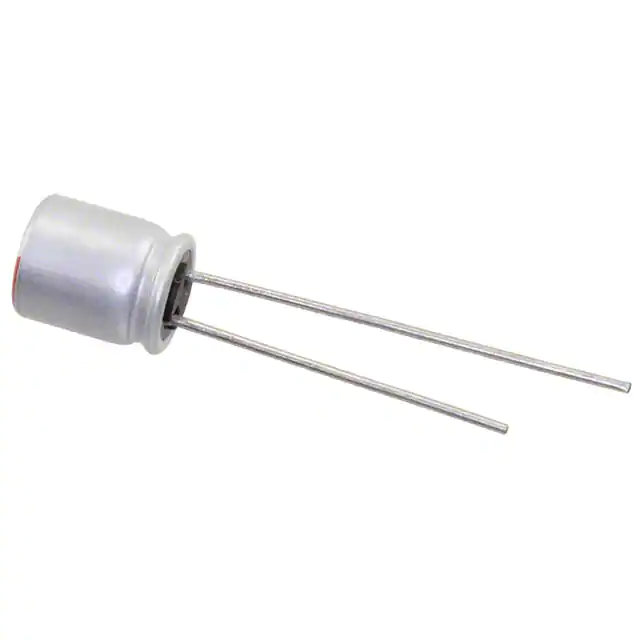

Nichicon RS80E821MDNASQPX

Manufacturer No:
RS80E821MDNASQPX
Manufacturer:
Nichicon
Package:
Tape & Box (TB)
Datasheet:
RS80E821MDNASQPX Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY 820UF 20% 2.5V T/H
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymer
Capacitance:820 µF
Tolerance:±20%
Voltage - Rated:2.5 V
ESR (Equivalent Series Resistance):7mOhm
Lifetime @ Temp.:5000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Ratings:-
Applications:General Purpose
Features:-
Ripple Current @ Low Frequency:560 mA @ 120 Hz
Ripple Current @ High Frequency:5.6 A @ 100 kHz
Impedance:-
Lead Spacing:0.098" (2.50mm)
Size / Dimension:0.248" Dia (6.30mm)
Height - Seated (Max):0.354" (9.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

$0.38
189

Please send RFQ , we will respond immediately.
