RPS0J102MCN1GS
  • Share:

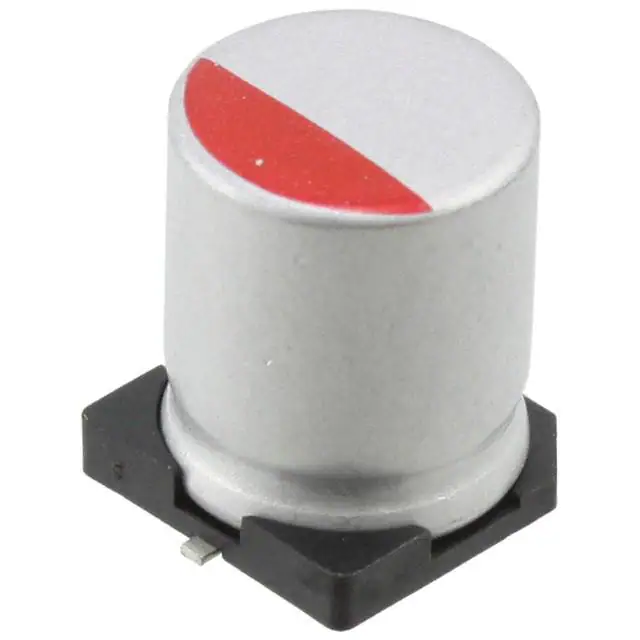

Nichicon RPS0J102MCN1GS

Manufacturer No:
RPS0J102MCN1GS
Manufacturer:
Nichicon
Package:
Tape & Reel (TR)
Datasheet:
RPS0J102MCN1GS Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY 1000UF 6.3V SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymer
Capacitance:1000 µF
Tolerance:±20%
Voltage - Rated:6.3 V
ESR (Equivalent Series Resistance):12mOhm
Lifetime @ Temp.:2000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Ratings:-
Applications:General Purpose
Features:-
Ripple Current @ Low Frequency:550 mA @ 120 Hz
Ripple Current @ High Frequency:5.5 A @ 100 kHz
Impedance:-
Lead Spacing:-
Size / Dimension:0.394" Dia (10.00mm)
Height - Seated (Max):0.488" (12.40mm)
Surface Mount Land Size:0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type:Surface Mount
Package / Case:Radial, Can - SMD
0 Remaining View Similar

In Stock

$1.71
21

Please send RFQ , we will respond immediately.
