RNU1C471MDNASQPH
  • Share:

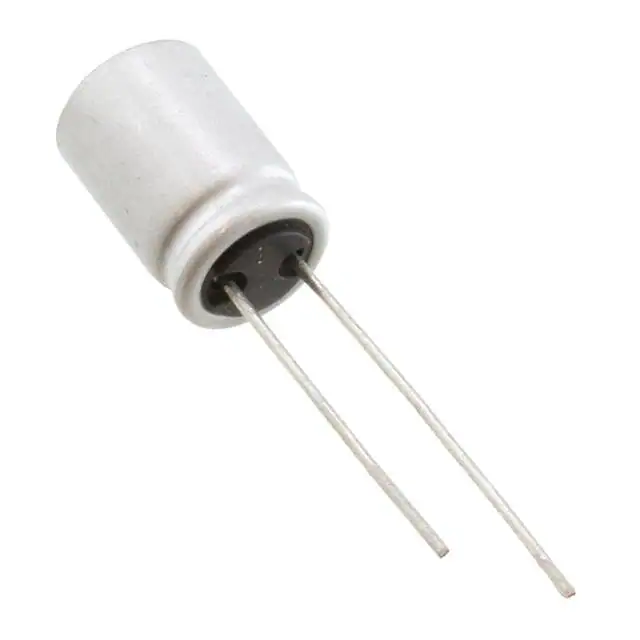

Nichicon RNU1C471MDNASQPH

Manufacturer No:
RNU1C471MDNASQPH
Manufacturer:
Nichicon
Package:
Tape & Reel (TR)
Datasheet:
RNU1C471MDNASQPH Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY 470UF 20% 16V T/H
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymer
Capacitance:470 µF
Tolerance:±20%
Voltage - Rated:16 V
ESR (Equivalent Series Resistance):10mOhm
Lifetime @ Temp.:5000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Ratings:-
Applications:General Purpose
Features:-
Ripple Current @ Low Frequency:610 mA @ 120 Hz
Ripple Current @ High Frequency:6.1 A @ 100 kHz
Impedance:-
Lead Spacing:0.197" (5.00mm)
Size / Dimension:0.394" Dia (10.00mm)
Height - Seated (Max):0.551" (14.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

$0.67
1,346

Please send RFQ , we will respond immediately.
