RNU1A122MDN1
  • Share:

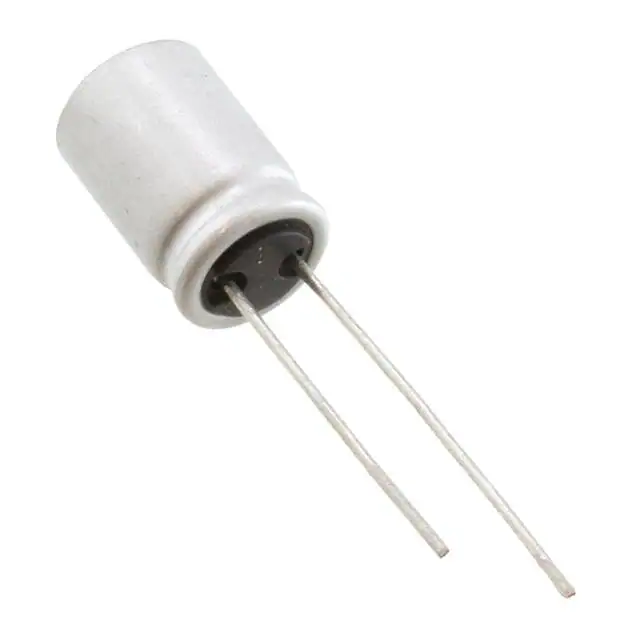

Nichicon RNU1A122MDN1

Manufacturer No:
RNU1A122MDN1
Manufacturer:
Nichicon
Package:
Bulk
Datasheet:
RNU1A122MDN1 Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY 1200UF 20% 10V T/H
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymer
Capacitance:1200 µF
Tolerance:±20%
Voltage - Rated:10 V
ESR (Equivalent Series Resistance):9mOhm
Lifetime @ Temp.:2000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Ratings:-
Applications:General Purpose
Features:-
Ripple Current @ Low Frequency:620 mA @ 120 Hz
Ripple Current @ High Frequency:6.2 A @ 100 kHz
Impedance:-
Lead Spacing:0.197" (5.00mm)
Size / Dimension:0.394" Dia (10.00mm)
Height - Seated (Max):0.551" (14.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

$0.57
1,301

Please send RFQ , we will respond immediately.
