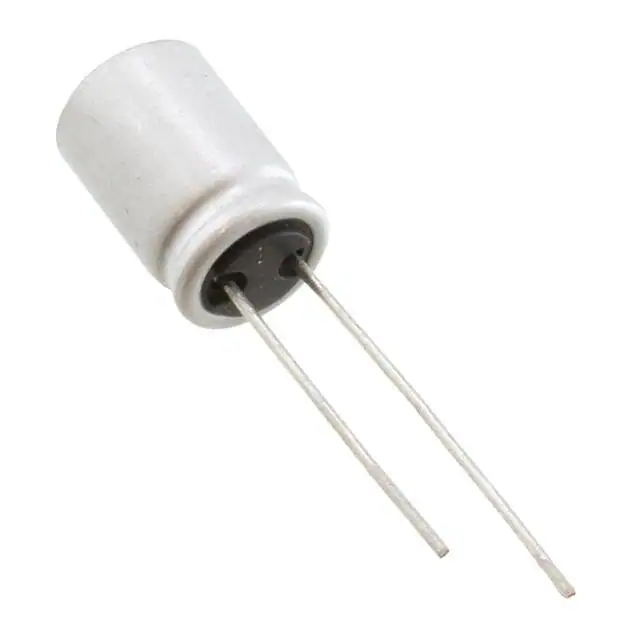

| Part Number | RNU0G821MDN1KX | RNU0J821MDN1KX | RNU0G821MDN1PX |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Type | Polymer | Polymer | Polymer |
| Capacitance | 820 µF | 820 µF | 820 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 4 V | 6.3 V | 4 V |
| ESR (Equivalent Series Resistance) | 7mOhm | 7mOhm | 7mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Features | - | - | - |
| Ripple Current @ Low Frequency | 570 mA @ 120 Hz | 570 mA @ 120 Hz | 570 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.7 A @ 100 kHz | 5.7 A @ 100 kHz | 5.7 A @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) | 0.512" (13.00mm) | 0.512" (13.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
