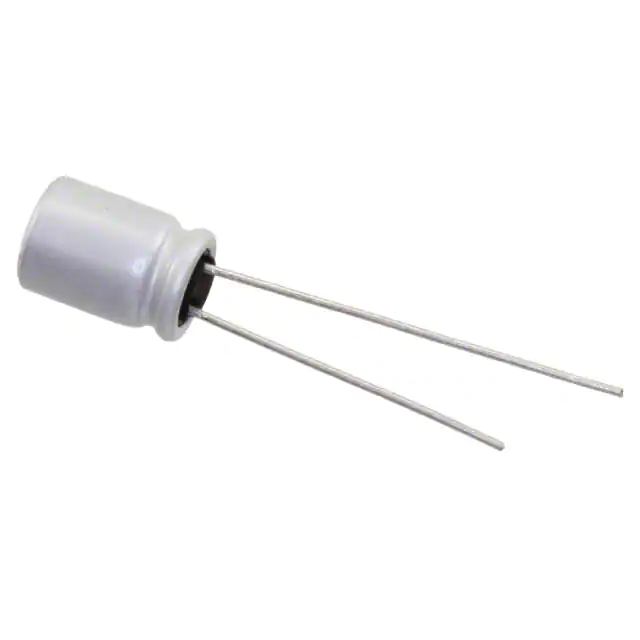

| Part Number | RNS1D330MDS1PX | RNS1D330MDS1JX |
|---|---|---|
| Manufacturer | Nichicon | Nichicon |
| Product Status | Active | Active |
| Type | Polymer | Polymer |
| Capacitance | 33 µF | 33 µF |
| Tolerance | ±20% | ±20% |
| Voltage - Rated | 20 V | 20 V |
| ESR (Equivalent Series Resistance) | 49mOhm | 49mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - |
| Applications | General Purpose | General Purpose |
| Features | - | - |
| Ripple Current @ Low Frequency | 220 mA @ 120 Hz | 220 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.2 A @ 100 kHz | 2.2 A @ 100 kHz |
| Impedance | - | - |
| Lead Spacing | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.433" (11.00mm) | 0.433" (11.00mm) |
| Surface Mount Land Size | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can |
