RNS0J102MDN1PH
  • Share:

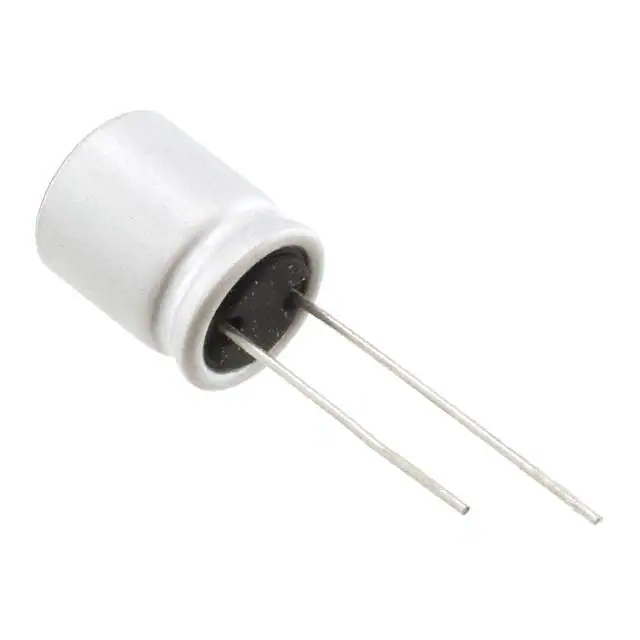

Nichicon RNS0J102MDN1PH

Manufacturer No:
RNS0J102MDN1PH
Manufacturer:
Nichicon
Package:
Cut Tape (CT)
Datasheet:
RNS0J102MDN1PH Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY 1000UF 6.3V T/H
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymer
Capacitance:1000 µF
Tolerance:±20%
Voltage - Rated:6.3 V
ESR (Equivalent Series Resistance):10mOhm
Lifetime @ Temp.:2000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Ratings:-
Applications:General Purpose
Features:-
Ripple Current @ Low Frequency:550 mA @ 120 Hz
Ripple Current @ High Frequency:5.5 A @ 100 kHz
Impedance:-
Lead Spacing:0.197" (5.00mm)
Size / Dimension:0.394" Dia (10.00mm)
Height - Seated (Max):0.551" (14.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

$1.17
747

Please send RFQ , we will respond immediately.
