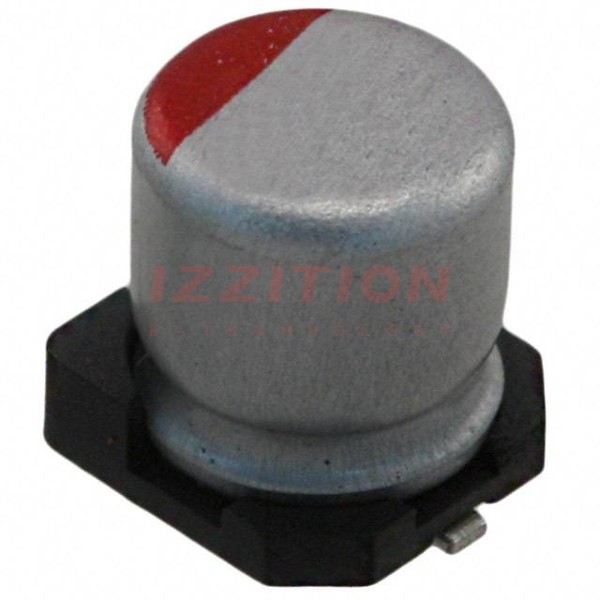

| Part Number | RFS0G101MCN1GS | RFS0J101MCN1GS | RFS0G151MCN1GS |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Type | Polymer | Polymer | Polymer |
| Capacitance | 100 µF | 100 µF | 150 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 4 V | 6.3 V | 4 V |
| ESR (Equivalent Series Resistance) | 22mOhm | 24mOhm | 22mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Features | - | - | - |
| Ripple Current @ Low Frequency | 261 mA @ 120 Hz | 250 mA @ 120 Hz | 261 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.61 A @ 100 kHz | 2.5 A @ 100 kHz | 2.61 A @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | - | - | - |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.224" (5.70mm) | 0.224" (5.70mm) | 0.224" (5.70mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | Radial, Can - SMD | Radial, Can - SMD | Radial, Can - SMD |
