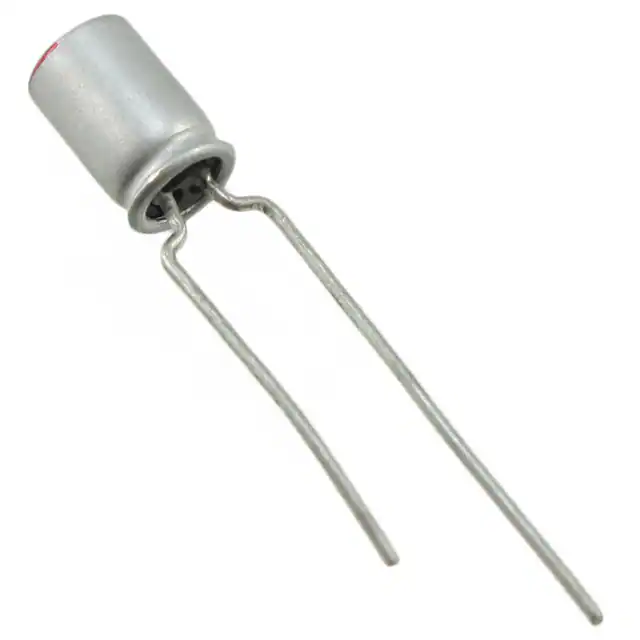

| Part Number | RF80E331MDN1JT | RF80J331MDN1JT | RF80G331MDN1JT |
|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active |
| Type | Polymer | Polymer | Polymer |
| Capacitance | 330 µF | 330 µF | 330 µF |
| Tolerance | ±20% | ±20% | ±20% |
| Voltage - Rated | 2.5 V | 6.3 V | 4 V |
| ESR (Equivalent Series Resistance) | 7mOhm | 11mOhm | 8mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Ratings | - | - | - |
| Applications | General Purpose | General Purpose | General Purpose |
| Features | - | - | - |
| Ripple Current @ Low Frequency | 420 mA @ 120 Hz | 370 mA @ 120 Hz | 400 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4.2 A @ 100 kHz | 3.7 A @ 100 kHz | 4 A @ 100 kHz |
| Impedance | - | - | - |
| Lead Spacing | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) | 0.354" (9.00mm) | 0.354" (9.00mm) |
| Surface Mount Land Size | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial, Can | Radial, Can | Radial, Can |
