RF80E101MDN1PX
  • Share:

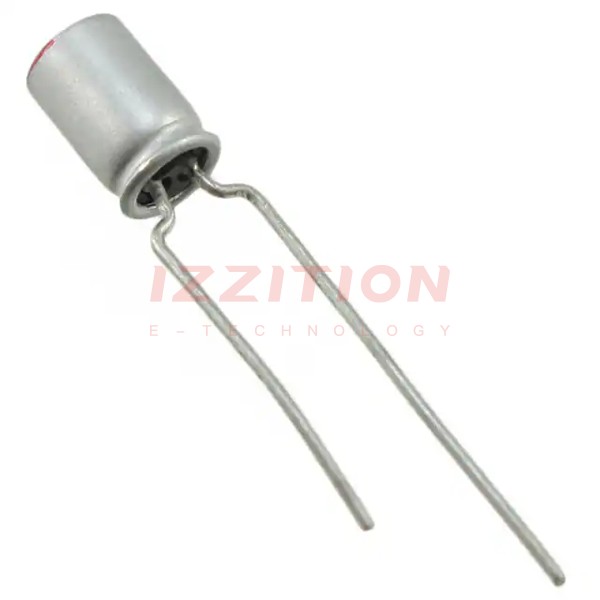

Nichicon RF80E101MDN1PX

Manufacturer No:
RF80E101MDN1PX
Manufacturer:
Nichicon
Package:
Cut Tape (CT)
Datasheet:
RF80E101MDN1PX Datasheet
ECAD Model:
-
Description:
CAP ALUM POLY 100UF 20% 2.5V T/H
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Polymer
Capacitance:100 µF
Tolerance:±20%
Voltage - Rated:2.5 V
ESR (Equivalent Series Resistance):7mOhm
Lifetime @ Temp.:2000 Hrs @ 105°C
Operating Temperature:-55°C ~ 105°C
Ratings:-
Applications:General Purpose
Features:-
Ripple Current @ Low Frequency:420 mA @ 120 Hz
Ripple Current @ High Frequency:4.2 A @ 100 kHz
Impedance:-
Lead Spacing:0.197" (5.00mm)
Size / Dimension:0.197" Dia (5.00mm)
Height - Seated (Max):0.315" (8.00mm)
Surface Mount Land Size:-
Mounting Type:Through Hole
Package / Case:Radial, Can
0 Remaining View Similar

In Stock

$0.91
639

Please send RFQ , we will respond immediately.
