Please send RFQ , we will respond immediately.

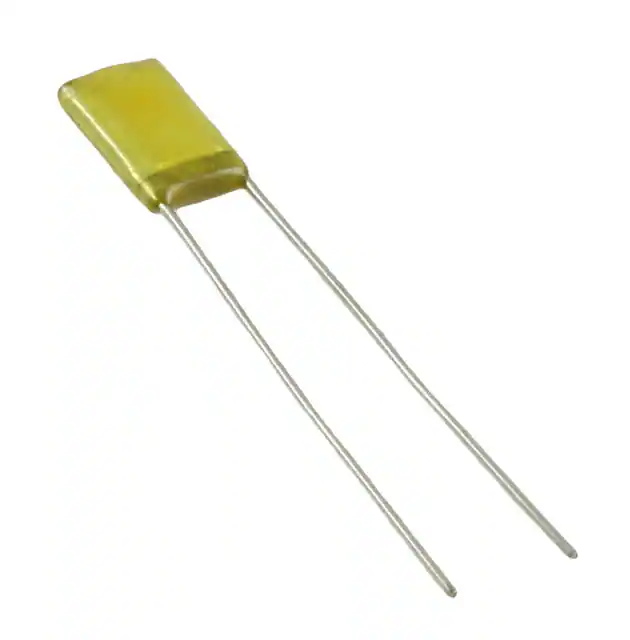

| Part Number | QYX2A822KTP | QYX2A823KTP | QYX2A122KTP | QYX2A222KTP | QYX2A822JTP |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Obsolete | Active | Active | Active | Active |
| Capacitance | 8200 pF | 0.082 µF | 1200 pF | 2200 pF | 8200 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | - | - | - | - | - |
| Voltage Rating - DC | 100V | 100V | 100V | 100V | 100V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.256" L x 0.118" W (6.50mm x 3.00mm) | 0.433" L x 0.217" W (11.00mm x 5.50mm) | 0.217" L x 0.110" W (5.50mm x 2.80mm) | 0.217" L x 0.110" W (5.50mm x 2.80mm) | 0.256" L x 0.118" W (6.50mm x 3.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.551" (14.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.197" (5.00mm) | 0.295" (7.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.197" (5.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
