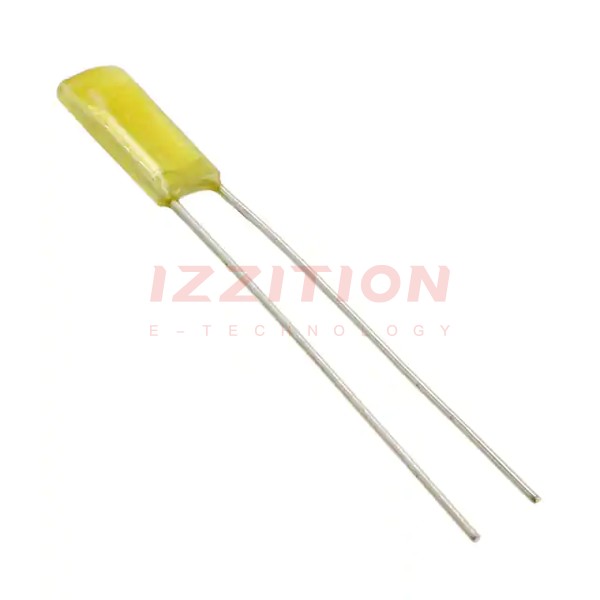

| Part Number | QYX2A472KTP | QYX2A473KTP | QYX2A474KTP | QYX2A272KTP | QYX2A472JTP |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 4700 pF | 0.047 µF | 0.47 µF | 2700 pF | 4700 pF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | - | - | - | - | - |
| Voltage Rating - DC | 100V | 100V | 100V | 100V | 100V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.217" L x 0.110" W (5.50mm x 2.80mm) | 0.335" L x 0.177" W (8.50mm x 4.50mm) | 0.650" L x 0.374" W (16.50mm x 9.50mm) | 0.217" L x 0.110" W (5.50mm x 2.80mm) | 0.217" L x 0.110" W (5.50mm x 2.80mm) |
| Height - Seated (Max) | 0.472" (12.00mm) | 0.551" (14.00mm) | 0.728" (18.50mm) | 0.472" (12.00mm) | 0.472" (12.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.394" (10.00mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
