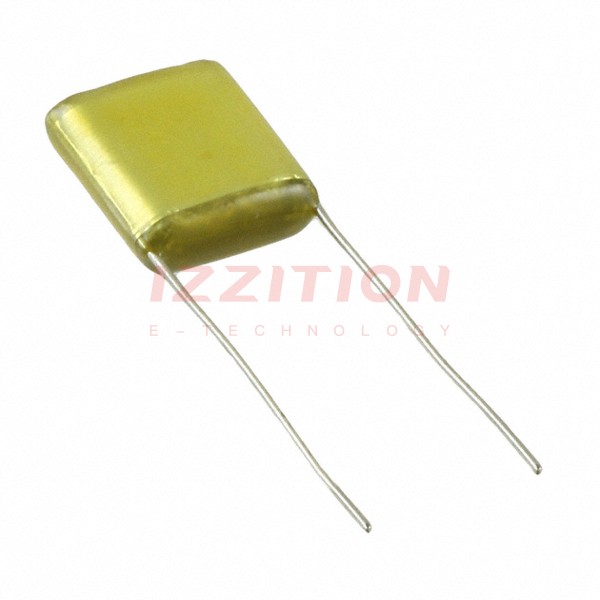

| Part Number | QYX2A154KTP | QYX2A184KTP | QYX2A104KTP | QYX2A124KTP | QYX2A152KTP | QYX2A153KTP | QYX2A154JTP |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Capacitance | 0.15 µF | 0.18 µF | 0.1 µF | 0.12 µF | 1500 pF | 0.015 µF | 0.15 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - | - |
| Voltage Rating - DC | 100V | 100V | 100V | 100V | 100V | 100V | 100V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.492" L x 0.236" W (12.50mm x 6.00mm) | 0.551" L x 0.276" W (14.00mm x 7.00mm) | 0.433" L x 0.217" W (11.00mm x 5.50mm) | 0.492" L x 0.236" W (12.50mm x 6.00mm) | 0.217" L x 0.110" W (5.50mm x 2.80mm) | 0.256" L x 0.118" W (6.50mm x 3.00mm) | 0.492" L x 0.236" W (12.50mm x 6.00mm) |
| Height - Seated (Max) | 0.610" (15.50mm) | 0.610" (15.50mm) | 0.551" (14.00mm) | 0.610" (15.50mm) | 0.472" (12.00mm) | 0.512" (13.00mm) | 0.610" (15.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.394" (10.00mm) | 0.394" (10.00mm) | 0.295" (7.50mm) | 0.394" (10.00mm) | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.394" (10.00mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - | - |
| Features | - | - | - | - | - | - | - |
