Please send RFQ , we will respond immediately.

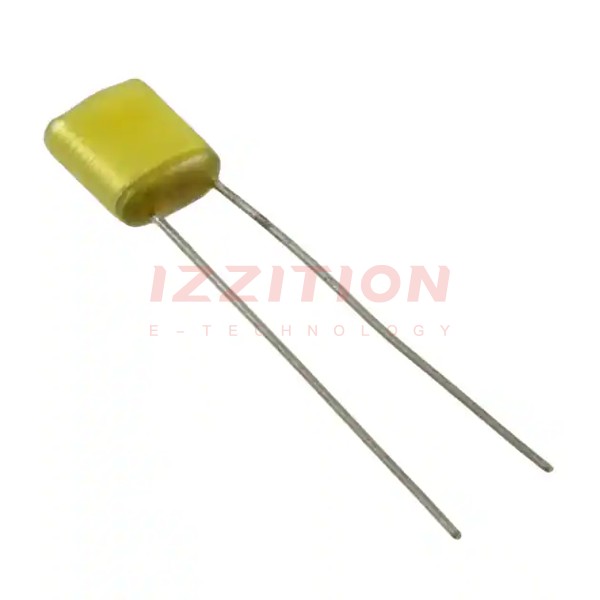

| Part Number | QYX1H393JTP | QYX1H394JTP | QYX1H393KTP | QYX1H333JTP | QYX1H392JTP |
|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance | 0.039 µF | 0.39 µF | 0.039 µF | 0.033 µF | 3900 pF |
| Tolerance | ±5% | ±5% | ±10% | ±5% | ±5% |
| Voltage Rating - AC | - | - | - | - | - |
| Voltage Rating - DC | 50V | 50V | 50V | 50V | 50V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.276" L x 0.157" W (7.00mm x 4.00mm) | 0.551" L x 0.374" W (14.00mm x 9.50mm) | 0.276" L x 0.157" W (7.00mm x 4.00mm) | 0.276" L x 0.157" W (7.00mm x 4.00mm) | 0.217" L x 0.118" W (5.50mm x 3.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) | 0.650" (16.50mm) | 0.413" (10.50mm) | 0.413" (10.50mm) | 0.335" (8.50mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.138" (3.50mm) | 0.295" (7.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - |
| Features | - | - | - | - | - |
