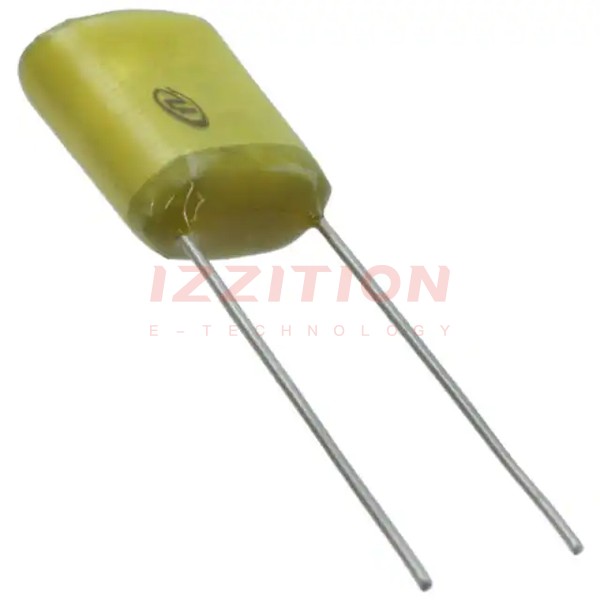

| Part Number | QYX1H274KTP | QYX1H474KTP | QYX1H224KTP | QYX1H272KTP | QYX1H273KTP | QYX1H274JTP |
|---|---|---|---|---|---|---|
| Manufacturer | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon | Nichicon |
| Product Status | Active | Active | Active | Obsolete | Active | Active |
| Capacitance | 0.27 µF | 0.47 µF | 0.22 µF | 2700 pF | 0.027 µF | 0.27 µF |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% | ±5% |
| Voltage Rating - AC | - | - | - | - | - | - |
| Voltage Rating - DC | 50V | 50V | 50V | 50V | 50V | 50V |
| Dielectric Material | Polyester | Polyester | Polyester | Polyester | Polyester | Polyester |
| ESR (Equivalent Series Resistance) | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | Radial | Radial | Radial | Radial | Radial | Radial |
| Size / Dimension | 0.492" L x 0.295" W (12.50mm x 7.50mm) | 0.551" L x 0.374" W (14.00mm x 9.50mm) | 0.433" L x 0.256" W (11.00mm x 6.50mm) | 0.217" L x 0.118" W (5.50mm x 3.00mm) | 0.256" L x 0.138" W (6.50mm x 3.50mm) | 0.492" L x 0.295" W (12.50mm x 7.50mm) |
| Height - Seated (Max) | 0.630" (16.00mm) | 0.650" (16.50mm) | 0.532" (13.50mm) | 0.335" (8.50mm) | 0.413" (10.50mm) | 0.630" (16.00mm) |
| Termination | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Lead Spacing | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.295" (7.50mm) |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Ratings | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
